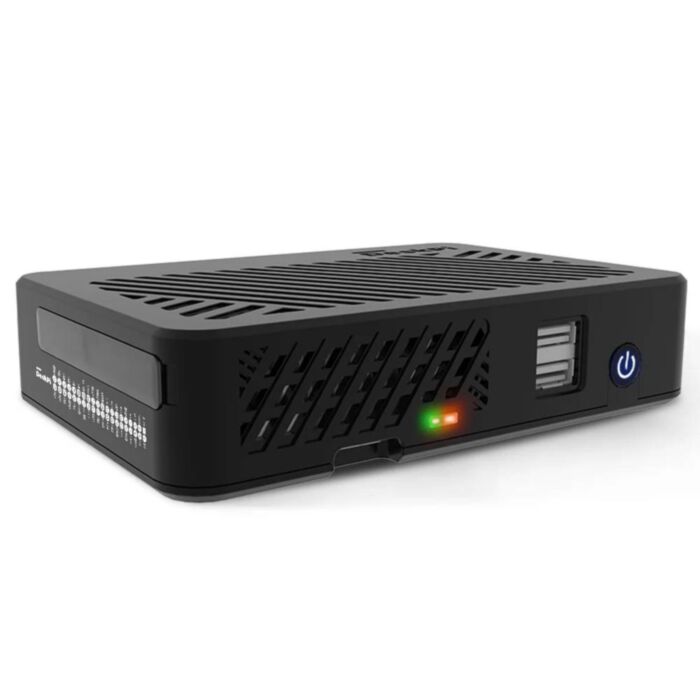

DeskPi Lite Case for Raspberry Pi 4
Turn a bare Raspberry Pi 4 into a tidy desktop box, with every cable at the back, active cooling and a proper power button.
Out of Stock
Sign up to get notified when it's available to order.
A compact desktop enclosure that turns a bare Raspberry Pi 4 into a tidy, set-top-box style mini computer.
The Pi 4's micro-HDMI, audio and power ports sit on different edges of the board, so cables end up going everywhere. An internal adapter board fixes this by moving them to the rear panel, converting both micro-HDMI outputs to full-size HDMI. Everything plugs in from one side, and you can use standard HDMI cables with no adapters.
Inside, a CNC aluminium heatsink with a PWM-controlled fan keeps the CPU cool under sustained load. You can control it with the official Raspberry Pi OS fan setting or with your own script. A front power button with safe shutdown, plus an Always-On switch, makes it equally at home as a media box or a headless home server.
Getting started:
- Apply the thermal pads, fit the heatsink and fan, then seat the Pi on the port adapter board
- Add
dtoverlay=dwc2,dr_mode=hostto config.txt and reboot to enable the front USB ports and safe power-off - Turn on fan control in
raspi-configunder Performance Options > P4 Fan (GPIO14) - Install the DeskPi v1 driver scripts from GitHub to set up the power button
Note: DeskPi currently advises against the Raspberry Pi OS 2025-05-13 release, because a CH341 driver issue affects the case's power-control features. Check the DeskPi GitHub page for the latest compatibility status.
Features
- Clean cable runs, with both HDMI outputs, 3.5 mm audio and USB-C power moved to the rear panel
- Run two displays from standard full-size HDMI cables, with no micro-HDMI adapters needed
- Two extra USB 2.0 ports on the front for thumb drives, keyboards and other peripherals
- Keeps the CPU cool under load, thanks to a CNC aluminium heatsink with a PWM fan
- Choose how the fan behaves: the official raspi-config temperature threshold, or your own Python script for a custom fan curve
- Shut down safely from the front power button, with programmable power cut-off from the onboard controller
- Always-On switch (enable/disable) for unattended server and set-top-box use
- GPIO stays accessible through the heatsink's edge expansion board, with a rubber dust cover to keep debris out
- Built-in 5V/GND socket for powering an extra 5V device
- Front power and disk-activity LEDs show status at a glance
- Uses the same driver as the DeskPi Pro
- Rubber feet keep it planted on the desk
Specifications
| Property | Specification |
|---|---|
| Compatible board | Raspberry Pi 4 Model B (1 GB, 2 GB, 4 GB and 8 GB) |
| Enclosure material | ABS plastic with internal CNC aluminium heatsink |
| Dimensions | 139 x 94 x 34 mm |
| Front I/O | 2x USB 2.0, power button, power and disk-activity LEDs |
| Rear I/O | 2x full-size HDMI, 3.5 mm audio, USB-C power input, Ethernet |
| Cooling | Aluminium heatsink with PWM fan (GPIO14) |
| Power control | Safe shutdown and power cut-off via front button, Always-On switch |
| Expansion | GPIO access via edge expansion board, 5V/GND auxiliary socket |
Resources
What's Included
- 1x DeskPi Lite ABS case
- 1x CNC aluminium heatsink with PWM fan and GPIO expansion board
- 1x Port adapter board
- 6x Thermal pads
- 2x LED light pipes
- 2x M2.5 screws
- 1x Instruction manual
Raspberry Pi 4, power supply and microSD card not included.
