Cubieboard A20 (Seeed Studio)

SKU: SS102990036

$135.21 AUD, inc GST
$122.92 AUD, exc GST

More Views

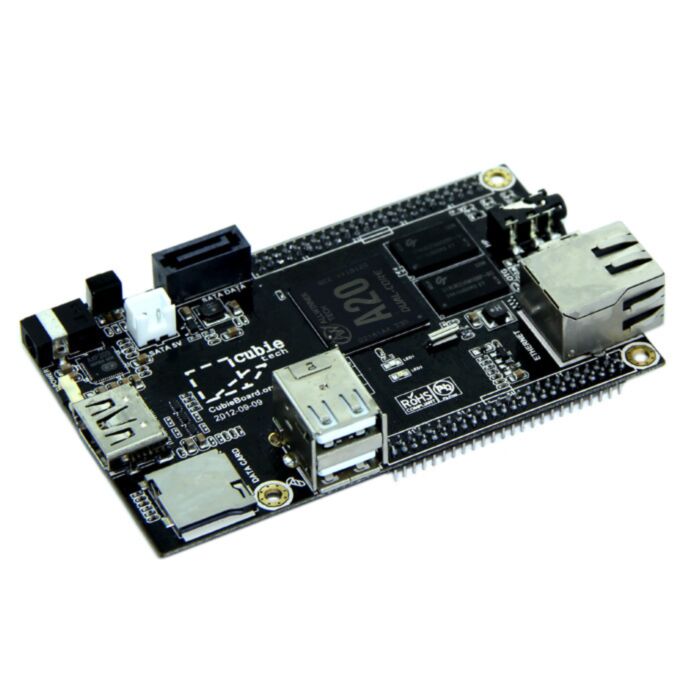

Cubieboard A20 (Seeed Studio)
135.21 AUD

SKU: SS102990036

$135.21 AUD, inc GST
$122.92 AUD, exc GST
0 units ship today
Contact us if you need this product urgently

An upgrade of cubieboard, cubieboard A20 is coming. Compared with cubieboard, the cubieboard A20 uses an Allwinner A20 processor which has a dual core CPU and twice GPU performance. On the software side, cubieboard2 supports both android 4.2 Jelly Bean, Ubuntu 12.04 and other Linux distributions.



Since cubieboard2 and cubieboard share the same PCB, all the accessories work with cubieboard can also fit cubieboard2.



Features


  • Allwinner A20 SOC


  • 96 pin extended interface


  • Built-in IR receiver


  • SATA supported


  • Supports 2.4GHz wireless keyboard and mouse



Specifications


  • CPU: ARM® Cortex™-A7 Dual-Core


  • GPU: ARM® Mali400MP2,Complies with OpenGL ES 2.0/1.1


  • Memory: 1GB DDR3 @960M


  • Video output: HDMI 1080p Output


  • Network: 10/100M Ethernet


  • Storage: 4GB internal NAND flash, up to 64GB on uSD slot, up to 2T on 2.5 SATA disk


  • IO ports: 2 USB Host, 1 micro SD slot, 1 SATA, 1 IR


  • Extended interfaces: 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP


  • Supports systems: Running Android, Ubuntu and other Linux distributions


  • Power supply:5VDC/2A power supply with 4.00mm(ext.diameter) x 1.7mm(int.diameter) barrel plug



Packing list


  • Main board x1


  • DC to USB power cable x1


  • SATA cable(data + power) x1


  • Heat Sink x 1



Documents

For more product information and technical support, please contact [email protected].





Documentation and Resources:
