Search results for: 'usb voltage regulator'

These switchmode plugpack adaptors are slim in size, lightweight, and feature manually selectable variable voltage outputs. All are MEPS compliant and come supplied with 7 plugs and a USB output socket.

The compact (0.4″ × 0.5″) D24V5F3 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 3.3 V while allowing for a maximum output current of 500 mA. This regulator offers typical efficiencies between 80% and 90% and has a very low dropout, so it can be used with input voltages as low as a few hundred millivolts above 3.3 V. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 45 V and efficiently reduces it to 5 V. The board measures...

This synchronous switching step-up/step-down regulator efficiently produces 12 V from input voltages between 2.8 V and 22 V. Its ability to convert both...

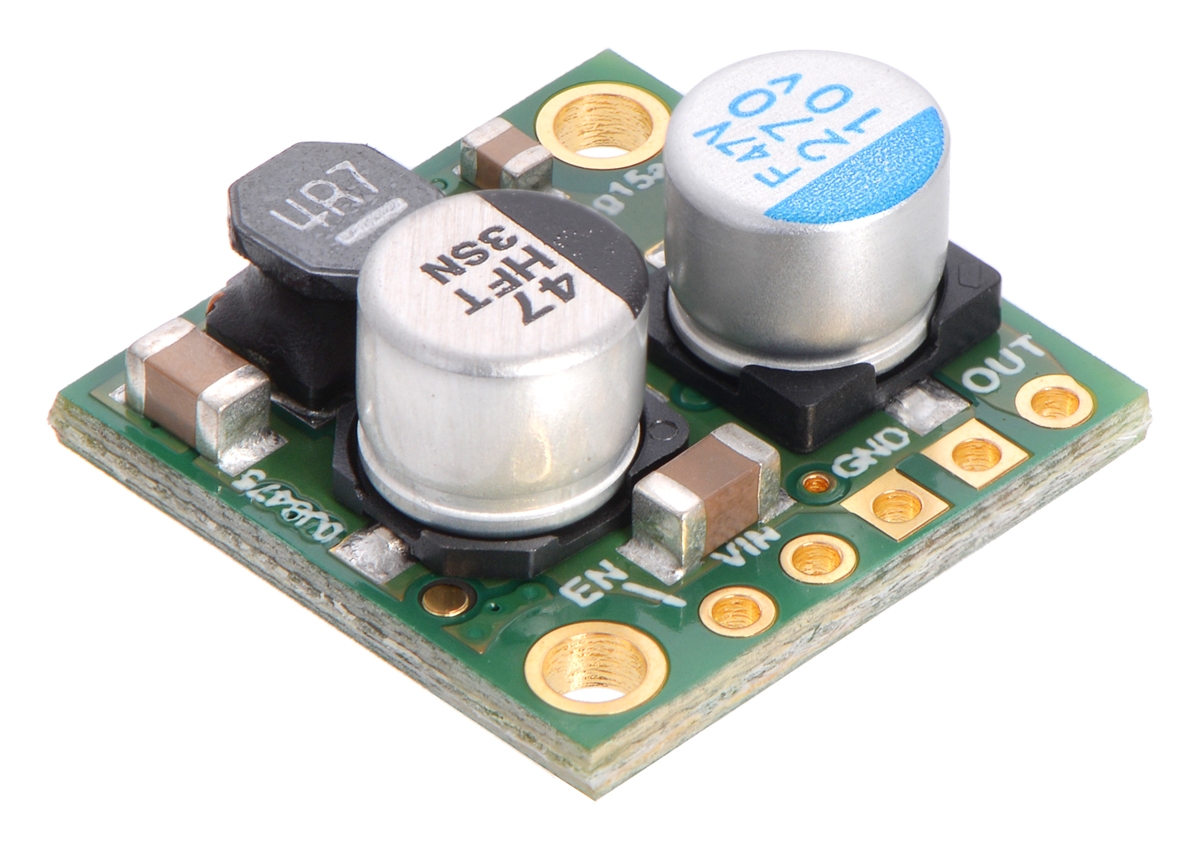

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 5 V. The board measures only 0.7″ × 0.7″, but it allows a typical continuous output current of up to 2.5 A. Typical efficiencies of 85% to 95% make this regulator well suited for powering moderate loads like sensors or small motors. High efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps.

These switchmode plugpack adaptors are slim in size, lightweight, and feature manually selectable variable voltage outputs. All are MEPS compliant and come supplied with 7 plugs and a USB output socket.

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

The compact (0.4″ × 0.5″) D24V5F5 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 5 V while allowing for a maximum output current of 500 mA. This regulator offers typical efficiencies between 85% and 90% and has a very low dropout, so it can be used with input voltages as low as a few hundred millivolts above 5 V. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This is the LM317TG voltage regulator, a three-terminal positive regulator with a 1.2V to 37V adjustable output voltage. This adjustable regulator provides a local regulation, internal current limiting, thermal shut-down control, and safe area protection for your project. Did we mention that this guy is easy to use? It only requires two external resistors to set the output voltage. Each one of these voltage regulators can output a max current of 1.5A.

This compact (0.32"×0.515") switching step-up (or boost) voltage regulator efficiently generates 6 V from input voltages as low as 1.3 V and handles...

The compact (0.4″ × 0.5″) D24V6F5 switching step-down (or buck) voltage regulator takes an input voltage between 7 V and 42 V and efficiently reduces it to 5 V while allowing for a maximum output current of 600 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This USB-to-I²C adapter enables a PC or other USB host to act as the controller on an I²C bus, reading and writing data from I²C target devices connected...

The compact (0.4″ × 0.5″) D24V6F12 switching step-down (or buck) voltage regulator takes an input voltage between 15 V and 42 V and efficiently reduces it to 12 V while allowing for a maximum output current of 600 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 36 V and efficiently reduces it to 12 V. The board measures...

The compact (0.4″ × 0.5″) D24V5F6 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 6 V while allowing for a maximum output current of 500 mA. This regulator offers typical efficiencies between 85% and 93% and has a very low dropout, so it can be used with input voltages as low as a few hundred millivolts above 6 V. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 45 V and efficiently reduces it to 6 V. The board measures...

The MonkMakes Power for micro:bit opens up lots of ways of powering your micro:bit.

This compact (0.4" × 0.5") switching step-down (or buck) voltage regulator takes input voltages between 4 V and 50 V and efficiently reduces them to a...

This synchronous switching step-down (or buck) regulator takes an input voltage of up to 40 V and efficiently reduces it to 5 V with an available output...

1 Typical continuous output current at 30 V in and 9 V out. Actual achievable continuous output current is a function of input and output voltages and is...

1 Typical continuous output current at 30 V in and 3.3 V out. Actual achievable continuous output current is a function of input and output voltages and...

1 Typical continuous output current at 30 V in and 3.3 V out. Actual achievable continuous output current is a function of input and output voltages and...

This compact (0.4" × 0.5") switching step-down (or buck) voltage regulator takes input voltages up to 50 V and efficiently reduces them to 12 V while...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 7.5 V. The board...

This compact (0.4" × 0.5") switching step-down (or buck) voltage regulator takes input voltages between 4 V and 50 V and efficiently reduces them to a...

1 Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

This synchronous switching step-up/step-down regulator efficiently produces 6 V from input voltages between 2.8 V and 22 V. Its ability to convert both...

1 Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 36 V and efficiently reduces it to 6 V. The board measures...

This synchronous switching step-up/step-down regulator efficiently produces 15 V from input voltages between 2.8 V and 22 V. Its ability to convert both...
