Micro Gearmotor - 460 RPM (6-12V)

These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 50:1 and operate up to 12 volts and have a stall torque of 20 oz-in. and a max speed of 460 RPM. Each micro gearmotor sports a 3mm D-shaft.

50:1 Micro Metal Gearmotor HP

This gearmotor is a miniature (0.94" x 0.39" x 0.47"), high-power brushed DC motor with 51.45:1 metal gearbox, similar to Sanyo’s popular 12 mm gearmotors. These units have a 0.365"-long, 3 mm-diameter D-shaped output shaft. Key specs at 6 V: 625 RPM and 100 mA free-run, 15 oz-in (1.1 kg-cm) and 1.6 A stall.

$39.95 AUD, inc GST

Pololu 75:1 Micro Metal Gearmotor HPCB 6V with Extended Motor Shaft

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 75.81:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.

$45.90 AUD, inc GST

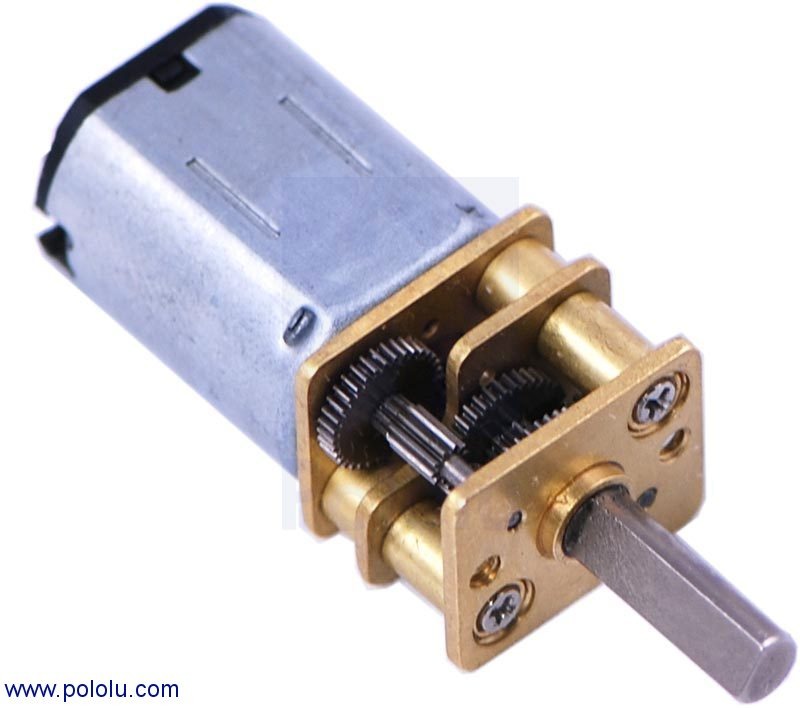

100:1 Micro Metal Gearmotor HP

This gearmotor is a miniature (0.94" x 0.39" x 0.47"), high-quality, high-power motor with 100.37:1 metal gearbox, similar to Sanyo’s popular 12 mm gearmotors. These units have a 0.365"-long, 3 mm-diameter D-shaped output shaft. Key specs at 6 V: 320 RPM and 80 mA free-run, 30 oz-in (2.2 kg-cm) and 1.6 A stall.

$40.10 AUD, inc GST

Tamiya 75026 Mini Motor Set

The Tamiya 75026 Mini Motor Set is a more powerful brushed DC motor for the Tamiya Mini Motor Gearboxes.

$7.65 AUD, inc GST

This is a mini DC motor with a 1:35 reduction box. It has small size and takes up very little space. It uses metal gears which is durable. The D-shape shaft facilitates...

Mini Metal DC Geared Motor (6V 375RPM 0.5Kg*cm)

Brand: DFRobot

$18.20 AUD, inc GST

Specifications Operating Voltage: 2.2 ~ 3.6V DC Rated Voltage: 3.0V DC Rated Speed: 12,000 @ 2,500rpm Rated Current: 90mA max Stall Current: 120mA max...

Mini vibration motor (Seeed Studio)

Brand: Seeed Studio

$5.15 AUD, inc GST

Out of stock

These are very unusual motors, but Adafruit thought they could be handy for projects that need a small geared-down motor. At the core is a 'pager motor' - a small thin...

Mini Geared Pager Motor with Return Spring

Brand: Adafruit

$3.70 AUD, inc GST

Micro Gearmotor - 900 RPM (6-12V)

These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 30:1 and operate up to 12 volts and have a stall torque of 9 oz-in. and a max speed of 900 RPM. Each micro gearmotor sports a 3mm D-shaft.

Out of stock

Micro Gearmotor - 175 RPM (6-12V)

These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 150:1 and operate up to 12 volts and have a stall torque of 45 oz-in. and a max speed of 175 RPM. Each micro gearmotor sports a 3mm D-shaft.

Micro Gearmotor - 90 RPM (6-12V)

These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 298:1 and operate up to 12 volts and have a stall torque of 70 oz-in. and a max speed of 90 RPM. Each micro gearmotor sports a 3mm D-shaft.

180:1 Mini Plastic Gearmotor, Offset 3mm D-Shaft Output

This compact, inexpensive plastic gearmotor (brushed DC motor with a 180:1 reduction gearbox) is well suited for use in small robots. While intended for operation at 4.5 V, it should run comfortably in the 3 V to 6 V range. The gearbox has a 0.38″-long, 3 mm-diameter D-shaped output shaft that is offset from but parallel to the motor shaft, and a built-in safety clutch helps protect the gears from excessive loads. Key specs at 4.5 V: 80 RPM and 80 mA free-run, 30 oz-in (2.2 kg-cm) and 0.8 A stall.

$10.40 AUD, inc GST

Out of stock

Micro Metal Gear Motor with Connector (50:1)

Brand: DFRobot

This motor has a long (0.365"/9.27 mm) D-profile metal output shaft that matches the 42x19mm and 32x7mm dimensions of the Pololu wheel. The brass faceplate has two mounting holes threaded for M1.6 screws (1.6mm diameter, 0.35mm thread pitch), or you can use the mounting bracket or extended mounting bracket, which are specifically designed to securely mount the gear motor while enclosing the exposed gears. We recommend the extended mounting bracket for wheels with recessed hubs, such as the 42×19mm wheel.

$18.80 AUD, inc GST
