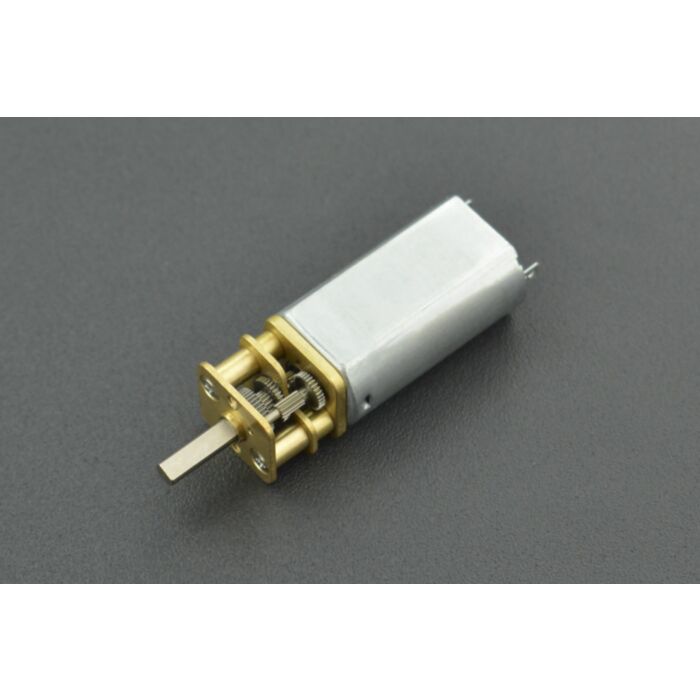

Mini Metal DC Geared Motor (6V 375RPM 0.5Kg*cm)

SKU: FIT0565 Brand: DFRobot

This is a mini DC motor with a 1:35 reduction box. It has small size and takes up very little space. It uses metal gears which is durable. The D-shape shaft facilitates...

$17.10 AUD, inc GST

$15.55 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

10-25 $15.08 (exc GST)
25+ $14.76 (exc GST)

This is a mini DC motor with a 1:35 reduction box. It has a small size and takes up very little space. It uses metal gears which is durable. The D-shape shaft facilitates the installation of the motor. The no-load speed is 375rpm and the noise is low.

In order to protect the service life of the motor, do not overload it;
Do not store and use it in high temperature or extreme humidity, which may affect the service life and effect of the motor;
When soldering is required on the motor terminals of the positive and negative poles of the power supply, if the soldering iron temperature is between 340 °C ± 40 °C, the heating time should be within 3 seconds to prevent overheating deformation of the plastic parts in the motor;
Do not let the motor shaft get stuck. If it is stuck, the motor will burn out;
The motor should be used within the voltage Specifications.

Specifications

Voltage: 6V
Direction of rotation: two-way
Reduction ratio: 1:35
No-load current: less than or equal to 90mA
No-load speed: 375rpm
Load torque: 91g.cm
Load speed: 160rpm
Load current: less than or equal to 200
Stall torque: 0.5kg.cm
Stall current: 950mA
Shaft length: 10mm
Shaft diameter: 3mm D-shaped shaft
Weight: 25g
Size: 12*13-R15.5*38mm (without motor output shaft)

Contains

Mini Metal DC Geared Motor (6V 375RPM 0.5Kg*cm) x1

This product is listed in:

Components & Parts>Motors>Metal Gearmotors>Micro
