Brushless DC Motor with encoder 12V 1.3A

SKU: FIT0153

$136.78 AUD, inc GST
$124.35 AUD, exc GST

More Views

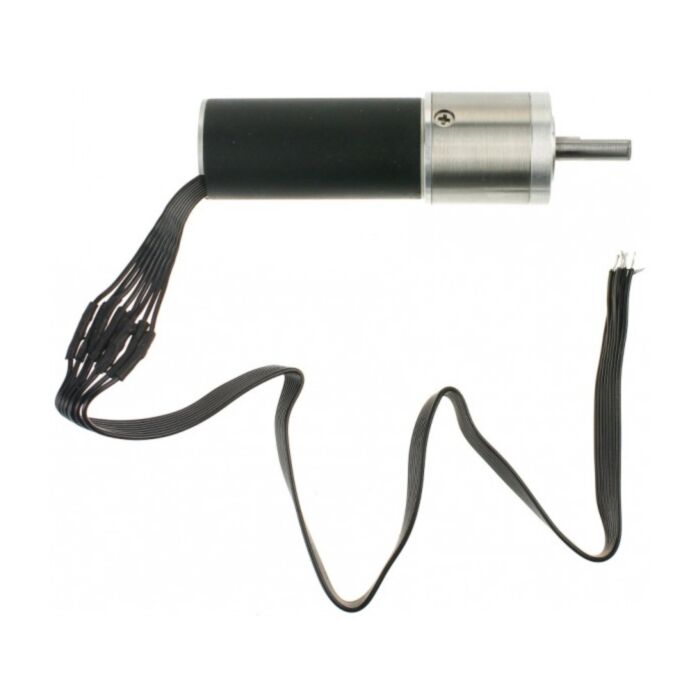

Brushless DC Motor with encoder 12V 1.3A

SKU: FIT0153

$136.78 AUD, inc GST
$124.35 AUD, exc GST

Retired Product

Replaced by: Brushless DC Motor
This product has been replaced by: Brushless DC Motor

Introduction

This is a DC Motor, it is an accurate DC coreless winding satellite and accurate gear reducing motor box. It is a powerful and efficient DC motor for your arduino and robotic projects. To control this motor, we recommed to use our brushless motor controller DFBLDC(1x5A)


Motor Specification
  • Rated voltage: 12V, Working voltage : 8-30V
  • No Load RPM: 6500 RPM, RPM after Gearbox: 216RPM
  • Rated torque: 20mN*m, Rated torque after Gearbox: 480mN*m (12V)
  • Rated current: 1.32A
  • Gearbox ratio: 1:30

Motor pins definition:
  • VA  Motor winding phase A pin.
  • VB  Motor winding phase B pin.
  • VC  Motor winding phase C pin.
  • GND  Hall sensor-GND
  • HALLA  Hall sensor output of phase A
  • HALLB  Hall sensor output of phase B
  • HALLC  Hall sensor output of phase C
  • VDD    Hall sensor power: 5-12V
