Beetle ESP32 Microcontroller

Rating:
100% of 100
SKU: DFR0575 Brand: DFRobot Guides (2)
Is FireBeetle-ESP32 too big for your projects? Why not try our newly launched Beetle-ESP32. This Beetle-ESP32 Microcontroller of 1.38”×1.34”small size is a simplified...
$18.40 AUD, inc GST
$16.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $16.23 (exc GST)
  • 25+ $15.89 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

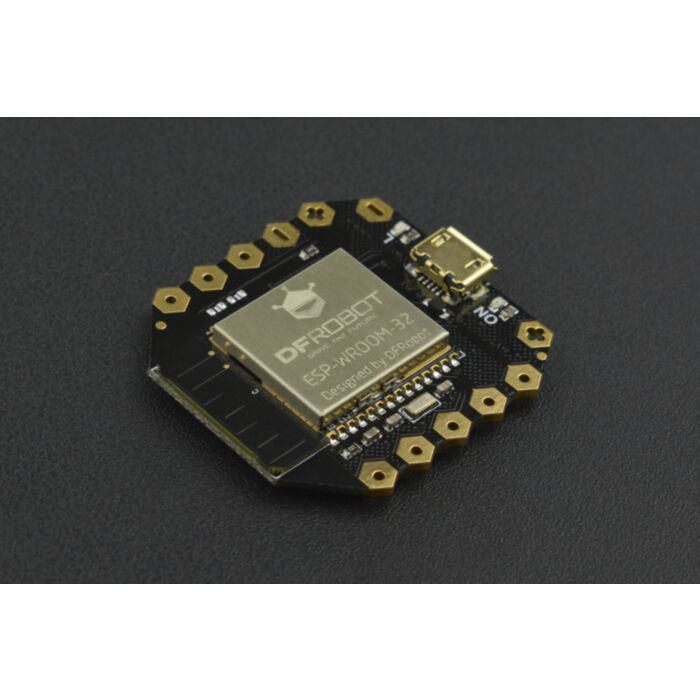

Is FireBeetle-ESP32 too big for your projects? Why not try our newly launched Beetle-ESP32. This Beetle-ESP32 Microcontroller of 1.38”×1.34” small size is a simplified version of FireBeetle-ESP32 and specially designed for electronic engineering fans and DIY lovers. It is equipped with 4 analog ports, 4 digital ports, UART, and I2C interfaces, which would be a perfect replacement for FireBeetle-ESP32. This microcontroller enables users to directly burn programs via the onboard USB interface. Meanwhile, Bluetooth and WiFi are integrated into the microcontroller for supporting more applications. With this Beetle-ESP32, you can easily build your dream project.

FEATURES

  • Small size of 35mm×34mm
  • Enable users to directly download and debug programs through Micro USB, free from the programmer.
  • Large-scale I/O ports with gold plating, easy to screw wire on it or to sew the board on the clothes with wires, no need to solder.
  • A group of gold plating power interfaces of honeycomb type, convenient to use.
  • Integrate WIFI and Bluetooth
Specification

  • USB Supply Voltage: 5.0V
  • VIN Supply Voltage: DC 3.5-6.5V
  • Processor: Tensilica LX6 dual-core processor (One for high-speed connection; one for independent programming)
  • Frequency: 240MHz
  • SRAM: 520KB
  • Flash: 16Mbit
  • Wi-Fi Standard: FCC/CE/TELEC/KCC
  • Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r(802.11n, high speed can reach to 150 Mbps),  converge A-MPDU and A-MSDU, supporting 0.4us protecting interval.
  • Frequency Range: 2.4~2.5GHz
  • Bluetooth Protocol: comply with BR/EDR/BLE standard of Bluetooth v4.2.
  • On-chip Clock: 40MHz crystal and 32.768 kHz crystal
  • Digital Interface: D2, D3, D4, D7
  • Analog Interface: A0, A1, A2, A3
  • I2C: 1
  • Serial Port: 1
  • Dimension: 35×34mm/1.38×1.34"
Documents

Parts List

  • Beetle ESP32 Microcontroller               x1
