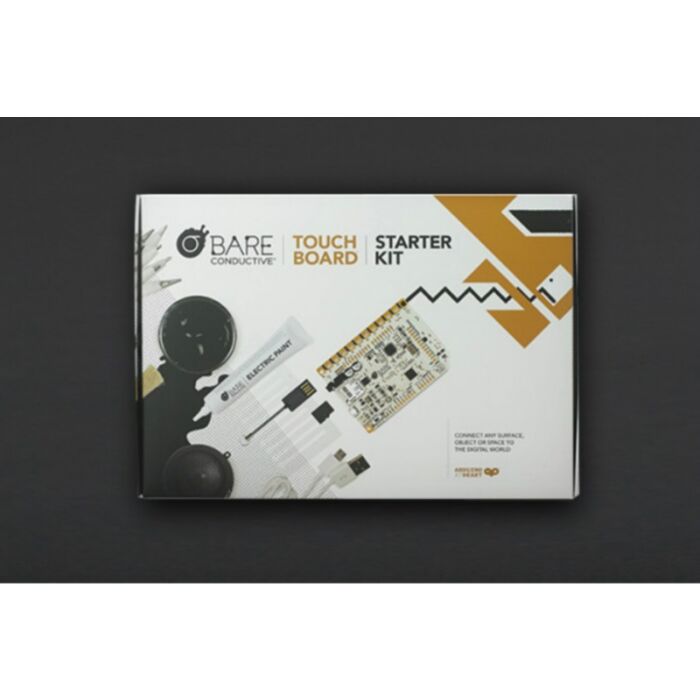

Bare Conductive Touch Board Starter Kit

SKU: TOY0065 Brand: DFRobot

Retired Product

Replaced by: CE05668

This product has been replaced by: CE05668
This product is no longer available. This page is only for reference.

Introduction

If you've ever thought about making a poster play your favourite song, giving objects the ability to speak, or creating hidden sensors in your house, then the Touch Board Starter Kit is for you.

Each kit contains a Touch Board, Electric Paint, and everything you need to start transforming the world around you. There is no need for programming expertise! The Touch Board Starter Kit comes ready to plug and play, so you can create any of its three featured projects right out of the box. The Guidebook will take you through step-by-step instructions, and is packed with ideas, resources, and inspiration for you to build on.

Give life to your imagination! Check out the featured projects below, and start making your world interactive.

Bare Conductive’s Electric Paint is just like any other water-based paint, except that it’s electrically conductive! This means that you can paint sensors directly onto most materials. When used alongside the Touch Board, an easy-to-use Arduino@Heart microcontroller, it gives you the ability to turn almost any material or surface into a sensor.

Project 1 Graphic Sensors http://www.bareconductive.com/make/starter-project-1-graphic-sensors/
Project 2 Objects As Sensors http://www.bareconductive.com/?p=47789
Project 3 Sensing Spaces http://www.bareconductive.com/?p=41926 ...
Extensive project examples and resources at: www.bareconductive.com/make

FEATURES

Electric Paint:

Paint, screenprint, stencil, spray on or apply like any other water-based paint
Dries at room temperature in 10-15 minutes
Must be fully dry to work
Easily removable with soap and water
Seal with acrylic paint or spray varnish
Can last years if treated properly and kept dry
Works on: paper, cardboard, wood, plastic, glass, plaster, some rubbers, textiles, etc…
Can be painted or sprayed over for protection or multi-layered circuitry
Can be used with conductive thread and e-textiles
Surface resistivity approx 55 ohms/square at 50 microns layer thickness

Touch Board

Touch and Distance Sensing
Works great with Electric Paint
Preprogrammed as an MP3 Player
Easy to program as a MIDI instrument or MIDI interface
HID capable – turn the Touch Board into a keyboard or mouse
Arduino-compatible and programmable through the Arduino IDE
Arduino Leonardo pin layout supporting Arduino shields
Built in LiPo battery charger
3.5mm audio jack
20 Digital I/O pins
12 Analogue pins
Atmel ATMega32U4 Microprocessor
Freescale MPR121 dedicated touch interface
VLSI VS1053B audio processor
32 kB of Flash Memory of which 4 KB is used for bootloader
2.5 kB of SRAM
5V operating voltage

Documents

Official Website

Parts List

Bare Conductive Touch Board Starter Kit x1
