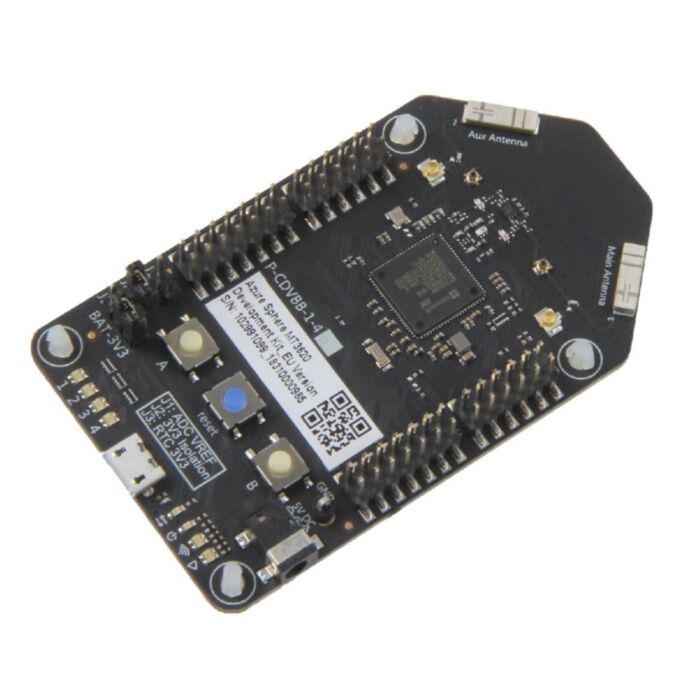

Azure Sphere MT3620 Development Kit - EU Version

SKU: SS102991099 Brand: Seeed Studio

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

Microsoft Azure Sphere is a solution for creating highly-secured, connected, MCU-powered devices. Azure Sphere brings together the best of Microsoft’s expertise in cloud, software and silicon—resulting in a unique approach to security that starts in the silicon and extends to the cloud. Together, Azure Sphere certified MCUs, the Azure Sphere OS, and the Azure Sphere Security Service provide you with the confidence and the power to reimagine your business and create the future.

Azure Sphere provides three levels of security technology:

1.Secured MCU

Secured from the silicon up. The new MT3620 crossover class of MCUs combines for the first time both real-time and application processors with built-in Microsoft security technology and connectivity.

2.Secured OS

An OS built for security and agility to create a trustworthy platform for new IoT experiences. Our secured OS builds security innovations pioneered in Windows into an HLOS small enough for MCUs.

3.Cloud Security

Protect devices with a cloud built for IoT security. The Azure Sphere Security Service renews device security, identifies emerging threats, and brokers trust between device, cloud, and other endpoints.

About Azure Sphere MT3620 Development Kit

Azure Sphere MT3620 Development Kit is specially designed to support rapid prototyping and to enable developers to experience Azure Sphere technology. MT3620 is the first Azure Sphere certified MCU. Azure Sphere certified MCUs are a new class of secured, connected crossover microcontrollers. MT3620 features three user-accessible microcontroller cores: one ARM Cortex-A7 core and two general purpose ARM Cortex-M4F cores. The MT3620 is designed to support real-time requirements when interfacing with a variety of on-chip peripherals including GPIO, UART, I2C, SPI, I2S, PWM and ADC. It has a built-in security subsystem with its own dedicated CM4F core for secure boot and secure system operation, along with dual-band 802.11 b/g/n Wi-Fi.

MT3620 Development Board Diagram

MT3620 Development Board Pinmap

For using I2S, please refer to M4 User Manual

The Azure Sphere operating system is pre-installed on the MT3620 and is designed to work with the Azure Sphere Security Service to create a secured IoT platform.



MT3620 software development is supported using the powerful Microsoft Visual Studio IDE:

  • Install Visual Studio (Support Community, Enterprise or Professional) and the Azure Sphere extension, plug the development board into a PC over USB, and start developing IoT applications with unprecedented levels of security.

  • To use the MT3620 Dev Board for Azure Sphere, you’ll need a Windows 10 PC with the latest Windows Updates, along with Azure Sphere software development kit (SDK).

Please find the instructions to set up your device here

Key Features

  • Azure Sphere: End-to-end security for IoT devices

  • Dual-band 802.11 /b/g/n with antenna diversity

  • Tri-core microcontroller with on-chip RAM & flash

  • Microsoft Visual Studio development environment

  • Online authentication & updates for device lifetime

MT3620 Development Board Specifications


Technical details

Dimensions: 85mm x50mm x16mm
Weight: G.W 110g
Battery: Exclude

Part List

1x Azure Sphere MT3620 Development Kit_EU Version
1x Micro USB Cable
