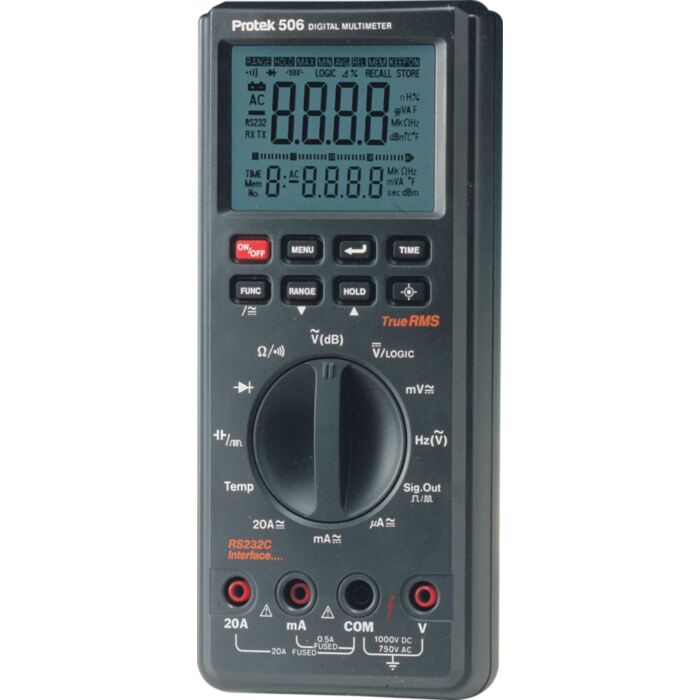

Auto Ranging True RMS Datalogger Digital Multimeter

SKU: AQ1098

$215.00 AUD, inc GST
$195.45 AUD, exc GST
Auto Ranging True RMS Datalogger Digital Multimeter

SKU: AQ1098

$215.00 AUD, inc GST
$195.45 AUD, exc GST

Retired Product

Replaced by: digital multimeter
This product has been replaced by: digital multimeter
With features including a 3.75 digit 4000 count display, auto ranging with analogue bar graph and a 10MHz frequency counter, this is undoubtedly the finest multimeter we have ever evaluated. With proper care this multimeter will last a lifetime, and is perfect for research and development, service work and general scientific measurement applications. Supplied complete with high quality silicon rubber leads and durable protective carry case.

Features

  • True RMS mode
  • Q 1098 features RS-232 interface to PC computer (software supplied for DOS and Windows)
  • Dual display for frequency, AC voltage and temperature
  • 10 Location memory
  • Time mode with alarm, clock and stop watch
  • MIN, MAX, AVG and relative modes
  • Decibel measurement
  • Capacitance and inductance measurement
  • Temperature mode (°C/°F)
  • Pulse signal injection function for logic and audible testing, etc
  • Continuity and diode test
  • Logic test
  • Auto power “off” and “keep on” mode
  • Fused 20A input
  • Warning buzzer sounds when leads are incorrectly inserted in the 20A current mode
  • Back lit display
  • Data hold and run mode
  • Low battery indication mode
  • Overload protection and safety design in compliance with UL 1244 and VDE0411.


Minimum PC Requirements
IBM Compatible 486 or greater
100Mhz processor
Requires RS232 COM port with 9 pin plug (or adaptor to suit)
Software provided for Windows 7 and earlier.

Software is compatible with Windows 7 and earlier.
Not Compatible with Mac Os.

Specifications

  • DC Voltage
  • Range 400mV, 4V, 40V, 400V, 1000V
  • Resolution 0.1mV, 1mV, 10mV, 100mV, 1V
  • Accuracy 0.5% +2 digits
  • AC Voltage
  • Range 400mV, 4V, 40V, 400V, 750V
  • Resolution 0.1mV, 1mV, 10mV, 100mV, 1V
  • Accuracy 1.5% +2 digits
  • DC Current
  • Range 400µA, 400mA, 20A
  • Resolution 0.1µA, 0.1mA, 0.01A
  • Accuracy 1% +2 digits
  • AC Current
  • Range 400µA, 400mA, 20A
  • Resolution 0.1µA, 0.1mA, 0.01A
  • Accuracy 1.5% +3 digits
  • Resistance
  • Range 400 Ohm, 4k Ohm, 40k Ohm, 400k Ohm, 4M Ohm, 40M Ohm
  • Resolution 0.1 Ohm, 1 Ohm, 10 Ohm, 100 Ohm
  • Accuracy 0.5% +2 digits
  • Frequency
  • Range 10kHz, 100kHz, 1MHz, 10MHz
  • Resolution 1Hz, 10Hz, 100Hz, 1kHz
  • Accuracy 0.01% +2 digits
  • Capacitance
  • Range 100µF
  • Resolution 0.01µF
  • Accuracy 3% +5 digits
  • Inductance
  • Range 0-20H, 20-50H, 50-100H
  • Resolution 0.01H all ranges
  • Accuracy 3% +5d, 5% +5d, 10% +5d
  • Temperature
  • Range -20°C - 1200°C (0°F - 2000°F)
  • Resolution 1°C /°F
  • Accuracy 3% +3d (10 - 350°C), 3% +5d(-20 - 10°C)
  • Decibels dBm
  • Range -25 dBm - +59 dBm
  • Resolution 0.01 dBm
  • Accuracy ±0.5 dBm
  • Logic Test 0.8V- 2.0V
  • Diode Test Test Voltage 3.3V Max
  • Continuity Test Less Than 100 Ohm
  • Signal Out (4.5V Sq Wave)2048Hz, 4096Hz, 8192Hz
  • Protection 250V/20A Fused
  • Dimensions 88W x 37D x 199H
