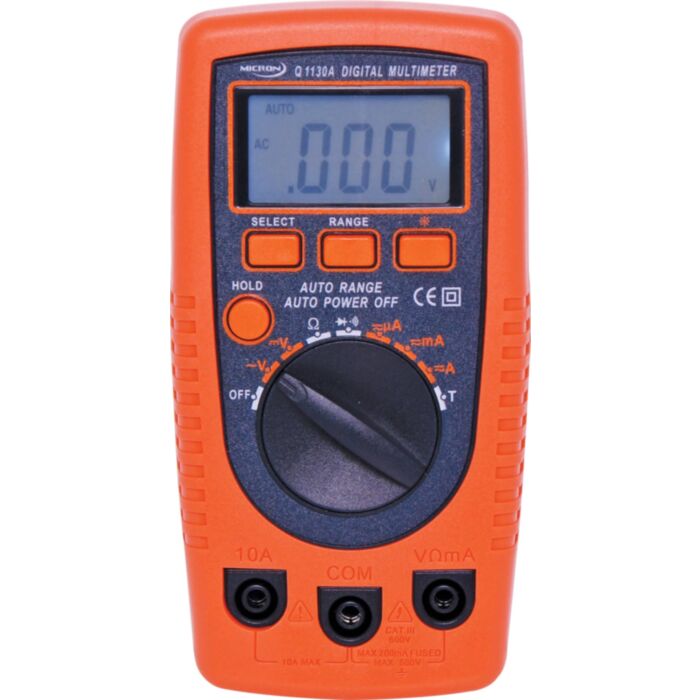

Auto Ranging Digital Multimeter

SKU: AQ1130A

$36.90 AUD, inc GST
$33.55 AUD, exc GST
Auto Ranging Digital Multimeter

SKU: AQ1130A

$36.90 AUD, inc GST
$33.55 AUD, exc GST

Retired Product

Replaced by: digital multimeter


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been replaced by: digital multimeter
Autoranging multimeters are great if you don't have a free hand to change ranges on your DMM. With this model, the user has the option of operating the meter in the autoranging mode, or can manually select the appropriate range. This quality mini auto ranging meter represents fantastic value for money and is great for mobile technicians, installers or enthusiasts. It features excellent performance and a wide range of functions at an affordable price. Supplied with test leads, temperature probe and built-in bench stand.


  • Manual override of auto ranging
  • Data hold function
  • Backlit display
  • Auto power off
  • Low battery indicator
  • AC Volts < 200mV - 600V
  • DC Volts < 200mV - 600V
  • AC/DC Amps < 200µA - 10A
  • Resistance < 200ohm - 2Mohm
  • Temperature measurement
  • Continuity & diode tester
  • Battery included


  • DC voltage: 200mV, 2V, 20V, 200V, 600V
  • AC voltage: 200mV,2V, 20V, 200V, 600V
  • DC Current: 200µA, 2mA, 20mA, 200mA, 2A, 10A
  • AC Current: 200µA, 2000µA, 20mA, 200mA, 2A, 10A
  • Ohms: 200ohm, 2kohm, 20kohm, 200kohm, 2Mohm, 20Mohm
  • Continuity: 50ohm threshold, audible tone
  • Diode test: Test current 1mA max
  • Temperature: -20 degrees C to 750 degrees C
  • Display: 3.5 digit, 1999 count, backlit
  • Protection: 200mA M205 fused on all inputs, except 10A range
  • Dimensions: 73W x 34.5D x 143H mm
