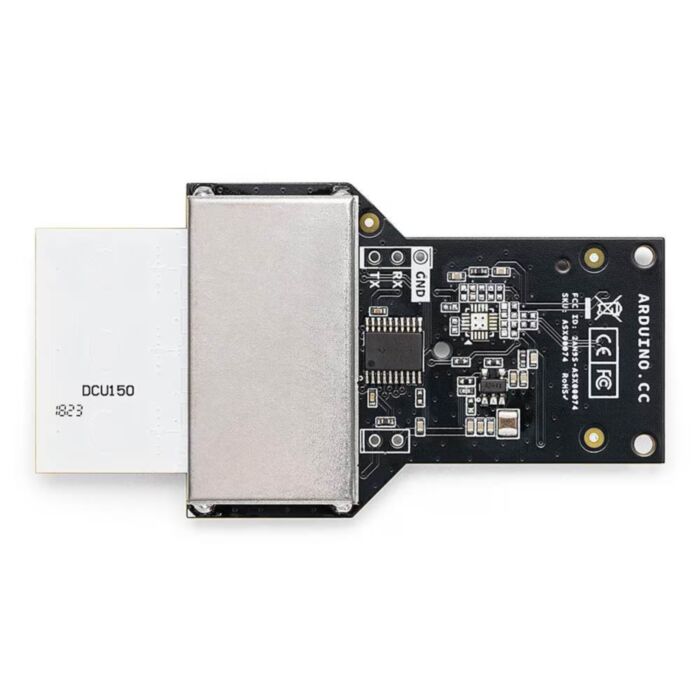

Arduino Portenta UWB Shield
Available with a lead time
Expect dispatch between Sep 03 and Sep 08
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.
Extend the capabilities of your Portenta projects with the Portenta UWB Shield, a versatile Ultra-Wideband (UWB) communication solution developed with Truesense DCU150 technology. Designed to integrate seamlessly with the Portenta C33, this shield empowers you to implement real-time location services (RTLS), precise two-way ranging, and advanced IoT applications in industrial automation, smart logistics, and interactive environments.
Acting as both a base station and a client device, the Portenta UWB Shield enables robust connectivity and ensures reliable performance across complex IoT systems, making it the ultimate tool for professional-grade prototyping and production.
Key benefits include:
- Dual functionality: Operates as both a UWB base station and a client device, offering unparalleled versatility.
- High precision: Supports RTLS and two-way ranging for accurate, real-time positioning and communication.
- Seamless integration: Connects easily to the Portenta C33 through high-density connectors, streamlining setup.
- Cloud connectivity: Combines with Portenta C33 for streamlined data management, remote monitoring, and advanced analytics.
- Robust and scalable: Easily expand your IoT network to meet evolving needs with secure and efficient UWB communication.
Applications
Unlock the potential of UWB technology in:
- Smart logistics: Dynamically optimize routes and processes with real-time data for seamless warehouse operations.
- Interactive environments: Enable proximity-triggered actions for immersive user experiences in smart spaces.
- Residential access control: Automate door entry for authorized personnel using UWB-enabled devices.
- EV automatic recharge: Precisely trigger charging processes for electric vehicles based on their position.
- Secure item tracking: Monitor high-value assets with real-time alerts and precise location tracking.
Technical Specifications
| Connectivity | Ultra-Wideband via Truesense DCU150 UWB Module based on NXP Trimension™ SR150 UWB IC, with 3 Pcb embedded Antennas:
| Dimensions | 53.4 mm x 37.5 mm x 9 mm |
| Interface | 2x 80-pins High-Density Connectors | Power | 3.3 V DC from Portenta Main Board |
| Compatible boards | Portenta C33 | Operating Temperature | -30 °C to +80 °C |
