Arduino MKR Relay Proto Shield

Rating:
100% of 100
SKU: TSX00003 Brand: Arduino
The MKR Relay Proto Shield allows you to easily command relays with your MKR board. The shield provides two on board relays and a small prototyping area if you need to add some other component to your project.
$38.80 AUD, inc GST
$35.27 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 06 and Jan 09

Quantity Discounts:

  • 5-10 $34.92 (exc GST)
  • 10+ $34.56 (exc GST)
  • 30+ $34.22 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

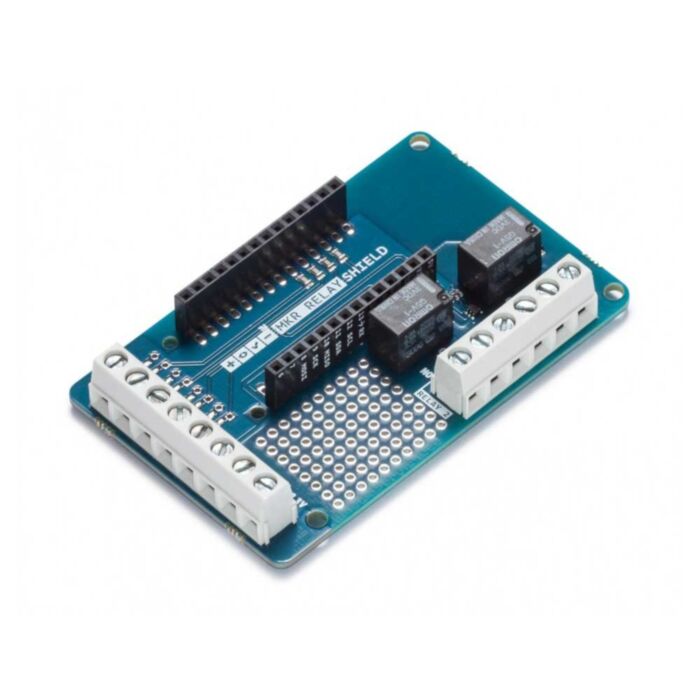

The MKR Relay Protoshield allows you to easily add relays to your MKR board based project.

The shield provides two relays (Datasheet) called RELAY1 and RELAY2 commanded by pin 1 and pin 2 respectively.

The shield also provides an easy connection by means of screw terminal blocks to A1 to A4 analog inputs, I2C and supply voltages.

  • Operating voltage 3.3V (supplied from the host board)
  • Two relays with NO, COM and NC connections
  • Works with battery powered board
  • 8 positions screw terminal blocks for easy connections with A1 to A4 Analog input, SCL SDA for I2C, GND and 3.3V output
  • 6 positions screw terminal blocks (NO, COM, NC for each relay)
  • Carry current: 2 A
  • Max. operating voltage: 24 VAC, 50 VDC
  • Max. operating current: 1 A
  • Max. switching capacity: 62.50 VA, 30W
  • Proto area

You can find here your board warranty information.

OSH: Schematics MKR Relay Proto Shield is open-source hardware! You can build your own board using the following files:

This product is listed in:

Arduino>Shields>MKR Shields
