Arduino MKR Proto Large Shield

SKU: TSX00002 Brand: Arduino

Need more room for your MKR Proto Shield?

$24.50 AUD, inc GST

$22.27 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 25 and Dec 26

Quantity Discounts:

5+ $21.38 (exc GST)
15+ $20.94 (exc GST)

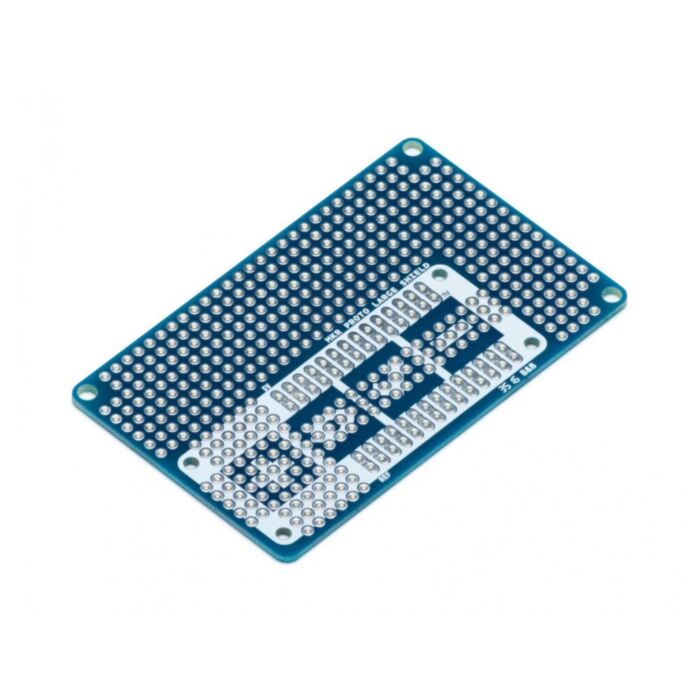

The MKR Proto Large Shield fits onto your MKR board using its provided female/male headers and enables you to fix it wherever you want with the mounting holes. This shield features a larger prototyping area with more than 300 solder points and makes connecting components to your board super simple, thanks to the silk that indicates the MKR board pins location

Tech specs

Digital I/O Pins	21
PWM Digital I/O Pins	depending on the board
Analog Input Pins	7
Analog Output Pins	depending on the board
DC Current per I/O Pin	depending on the board
DC Current for 3.3V Pin	depending on the board
DC Current for 5V Pin	depending on the board
Lenght	80 mm
Width	50 mm
Weight	19 gr

Documentation

OSH: Schematics

The MKR Large Proto Shield is open-source hardware! You can build your own board using the following files:

EAGLE FILES IN .ZIP

SCHEMATICS IN .PDF
