Sony IMX179 8MP Auto-Focus UVC USB Camera with 1080P HD Video

SKU: AC-B0197 Brand: Core Electronics

Explore the Arducam B0197, an 8MP 1080P USB Camera Module with a Sony IMX179 sensor for crisp images and autofocus. UVC compliance ensures broad compatibility with various operating systems for seamless integration.

Special Price $63.22 AUD, inc GST

Regular Price $114.95 AUD, inc GST

$57.47 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 13th of May

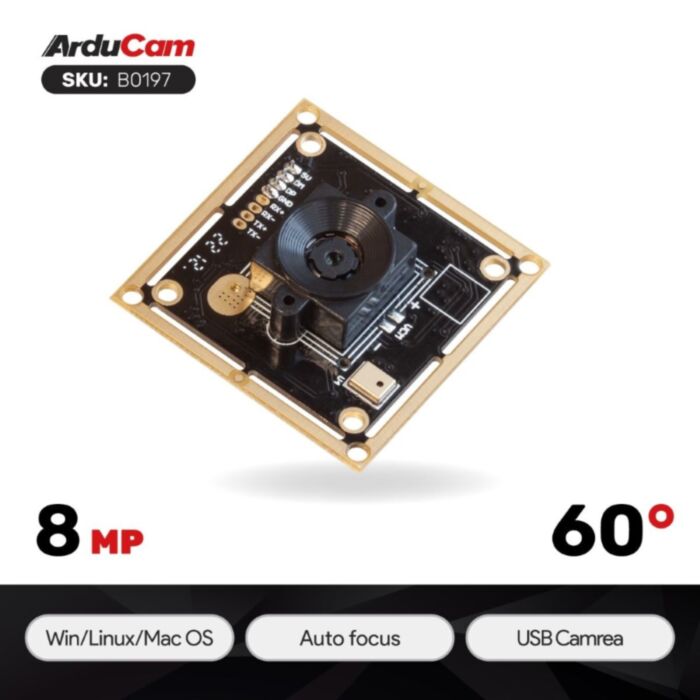

Arducam 8MP 1080P Auto Focus USB Camera Module - B0197

Delve into the details of the Arducam B0197, a high-resolution 8MP camera module equipped with a sophisticated Sony IMX179 image sensor, ensuring superior autofocus and 1080P video quality. This compact USB 2.0 camera is UVC-compliant, offering plug-and-play functionality across multiple platforms including Windows, Linux, Mac, and Android.

Key Specifications

Sensor	1/3.2" Sony IMX179
Resolution	8MP (3264 x 2448)
Frame Rate	15fps at 3264x2448 (MJPG), 30fps at 1080P (MJPG), 30fps at 640x480 (YUY2)
Data Format	MJPG/YUY2
Lens Specifications	FOV: D=72°, H=60°, V=47°, M6.5 Lens Mount

Advanced Functionality and Compatibility

The B0197 model boasts automatic control features for saturation, contrast, sharpness, white balance, and exposure. It also comes equipped with a single microphone, with an optional dual-channel upgrade, catering to diverse audio requirements.

Efficient Power and Durability

Powered directly via USB 5V with a maximum working current of 350mA, the B0197 is built to last, featuring an operating temperature range of -4°F to 167°F (-20°C to +75°C) and a sturdy 36mm x 36mm dimension design.

Resources and Documentation

Whether you're a hobbyist or a professional, the Arducam B0197 camera module is your gateway to capturing the world in stunning detail.
