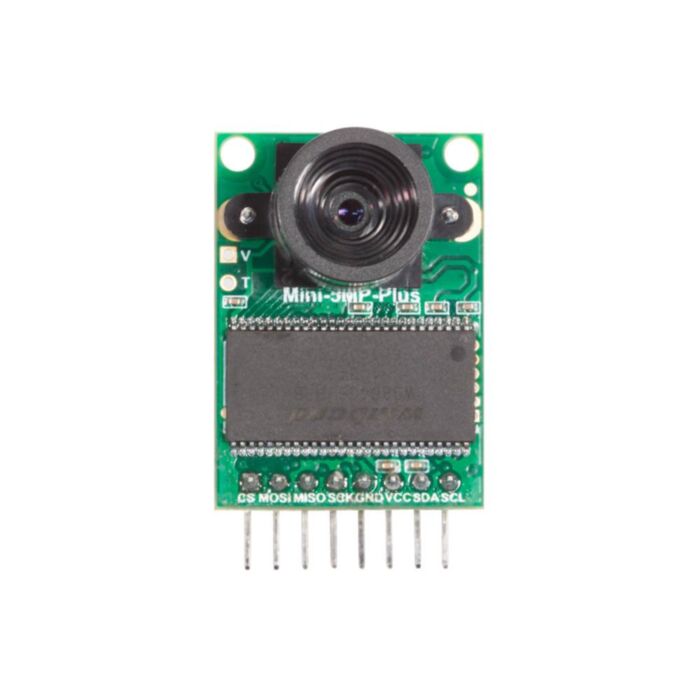

Arducam 5MP Plus OV5642 Mini Module Camera

SKU: AC-B0068 Brand: Arducam
Arducam-Mini-5MP-Plus(OV5642) is performance improved version compared to its predecessor Arducam-M-5MP.
$74.30 AUD, inc GST
$67.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

  • 6-12 $64.85 (exc GST)
  • 12+ $62.82 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Arducam-Mini-5MP-Plus(OV5642) is performance-improved version compared to its predecessor Arducam-M-5MP.
It not only offers the capability to add a camera interface that doesn’t have in some low-cost microcontrollers but also provides the capability to add multiple cameras to a single microcontroller.
Capture decent 5MP JPEG images and do 5MP full-resolution image capture, making it to be the ideal solution for IoT and scientific image processing applications.
Even more, it can record short movie clips as well.

  • Arducam Mini Module Camera Shield 5MP Plus OV5642 Camera Module is a general purpose high definition 5MP SPI camera, which reduces the complexity of the camera control interface
  • It integrates 5MP CMOS image sensor OV5642 and provides miniature size, as well as the easy-to-use hardware interface and open source code library
  • The Arducam mini can be used in any platform like Arduino, Raspberry Pi, ESP8266, Maple, Chipkit, or Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard Arduino boards
  • Support JPEG compression mode, single and multiple shoot mode, short movie recording, one-time capture multiple read operation, burst read operation, low power mode and etc.
  • It can be used in IoT, Robot, Wildlife, HDR, and Other battery-powered products or scientific image processing applications

Application

  • IoT cameras
  • Robot cameras
  • Wildlife cameras
  • Other battery-powered products
  • Can be used in MCU, Raspberry Pi, ARM, DSP, and FPGA platforms

Features

  • 5MP image sensor OV5642
  • M12 mount or CS mount lens holder with changeable lens options
  • IR sensitive with proper lens combination
  • I2C interface for the sensor configuration
  • SPI interface for camera commands and data stream
  • All IO ports are 5V/3.3V tolerant
  • Well mated with standard Arduino boards
  • Provide open source code library for Arduino, STM32, Chipkit, Raspberry Pi, BeagleBone Black
  • Small form of factor
  • Output Format: JPEG RGB RAW8

Key Specifications

  • Power supply 3.3V~5V
  • Active array size: 2592×1944
  • SPI speed: Max 8MHz
  • Shutter: rolling shutter
  • Frame buffer: 8MByte
  • Pixel Size: 1.4µm x 1.4µm
  • Default M12 Lens: 60°
  • Resolution support:5MP, 1080p, 720p, VGA, QVGA
  • Format support: YUV, JPEG
  • Size: 34 x 24 mm
  • Weight: 20g
  • Temperature: -10°C~+55°C
  • Lens Specification: sensor size: 1/4″; EFL:4.9mm; F/N:2.2; BFL:1.2mm; HFOV: 60 degree (SKU: U6067)

Shipping List

  • 1pcs MINI Arducam module Camera Shield w/ 5 MP OV5642 for Arduino UNO Mega2560 board
  • 1pcs Dupont Cable
