APC802 Radio Communication Module (2800 meters)

SKU: TEL0030 Brand: DFRobot

Retired Product

Replaced by: TEL0005
This product has been replaced by: TEL0005
This product is no longer available. This page is only for reference.

Introduction

The APC802 radio module provides a simple and economic solution to wireless data communications. The employment of an embedded high speed microprocessor and high performance IC creates a transparent UART/TTL interface, and elminates any need for packetizing and data encoding. It is a updated version of APC220 which provides up to 2800 meters communication ranger (line is sight). Also, it supports RS232,TTL, RS485 interface.

Specification

  • Outdoor line-of-sight range up to 2800meters (9600bps)
  • Frequency range 418-455MHz or 470-510MHz
  • 0.2MHz channel spacing
  • Output power:500mW(adjustable)
  • One interface of TTL,RS232,RS485
  • Outstanding receiver sensitivity -117dBm@9600bps
  • High efficiency forward error correction with interleaving encoding
  • GFSK modulation
  • Main parameters can be changed by APPCON RF module software
  • 2*256Bytes double data buffer
  • Power supply with voltage +4.7-6.5V
  • Power consumption:RX current:35mA,Tx current :400mA
  • Operating temperature:-30℃to85℃
  • Size:50*31.9*7.0(mm) (2x1.26x0.28'')

Documents

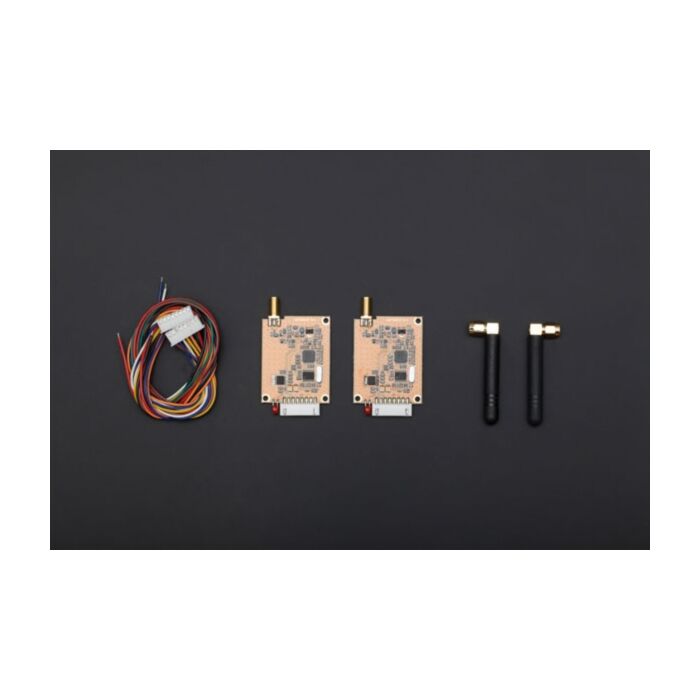

Parts List

  • APC802 Module x2
  • Cables x2
  • Antenna x2
