APC220 Radio Communication Module

Rating:
100% of 100
SKU: TEL0005 Brand: DFRobot
The APC220 radio module provides a simple and economic solution to wireless data communications. The employment of an embedded high speed microprocessor and high performance IC creates a transparent UART/TTL interface, and elminates any need for packetizing and data encoding.
$86.75 AUD, inc GST
$78.86 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 03 and Jul 09

Quantity Discounts:

  • 6+ $77.68 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The APC220 radio module provides a simple and economic solution to wireless data communications. The employment of an embedded high speed microprocessor and high performance IC creates a transparent UART/TTL interface, and elminates any need for packetizing and data encoding.

Features

  • Transmit distance up to 1000m (line of sight) @9600 bps
  • 256 bytes data buffer
  • High sensitivity (-112dbbm @9600 bps)
  • GFSK modulation
  • UART/TTL interface
  • Embedded watch dog
  • Size: 37x17x6.5 mm

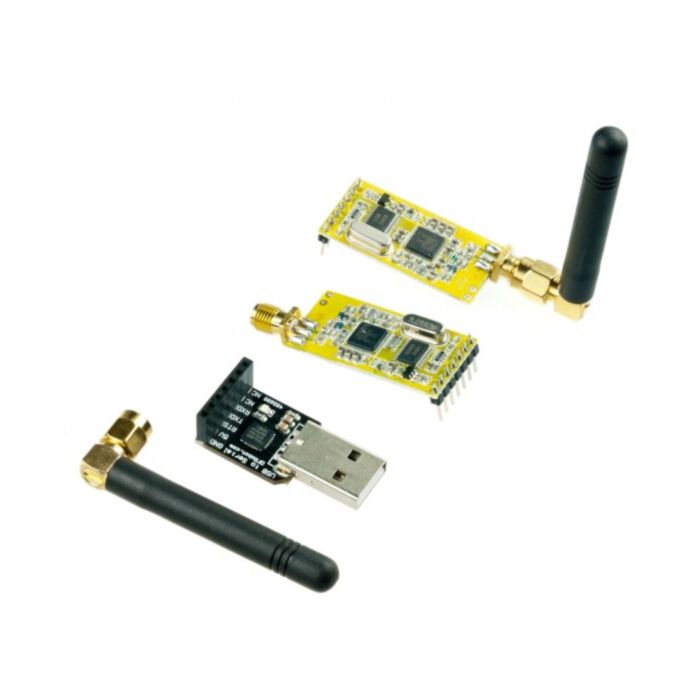

Shipping list

  • APC220 module(2 units)
  • Antenna for radio communication(2 units)
  • USB to TTL Converter (CP210) (1 unit)
