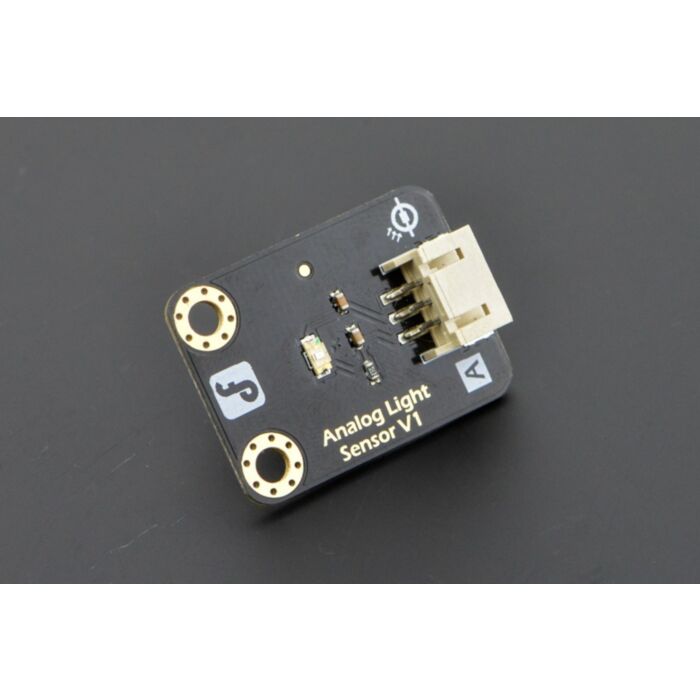

Analog Light Sensor LX1972

SKU: SEN0172

$7.69 AUD, inc GST
$6.99 AUD, exc GST

More Views

Analog Light Sensor LX1972
7.69 AUD

SKU: SEN0172

$7.69 AUD, inc GST
$6.99 AUD, exc GST
1 reviews 0 5 5

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 71 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 23rd of Jul with Express Post within Australia.
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

Light sensors are probably one of the most common sensors in life, they can be found in your laptop, phone or home lighting system. A light sensor measures the level of light in a room or ambient light in a space.

This analog light sensor uses LX1972 as its ambient light sensing part, with spectral response that closely emulates human eyes. It helps you to to detect the light density and reflects the analog voltage signal back to Arduino controller. You can set the threshold of voltage level to trig other units on Arduino project.

Notice: The new version of analog sensor port pin mapping has been changed as the following two features.Please check thetips for changing sensor cable pin mapping while using the I/O Expansion shield. We will continue to update. For the inconvenience caused, please understand.


FEATURES

  • Near Human Eye Spectral Response and Very Low IR Sensitivity
  • Temperature Stable
  • Scalable Output Voltage
  • Output with Low Fitler(<50Hz)

Specification

  • Supply Voltage: DC 3~5.5V
  • Operating Temperature: -40~80°C
  • Illumination Range: 1 – 800Lux
  • Output: analog voltage, 0 – 3.6V @VCC=5V
  • Module Size: 30 x 22mm

Parts List

  • Analog Light Sensor LX1972 x1
  • Analog Sensor Cable x1
Documentation and Resources:
