Ambient Light Sensor (0-200klx)

SKU: CE08181 Brand: Pimoroni

Retired Product

Replaced by: SEN0390

This product has been replaced by: SEN0390
This product is no longer available. This page is only for reference.

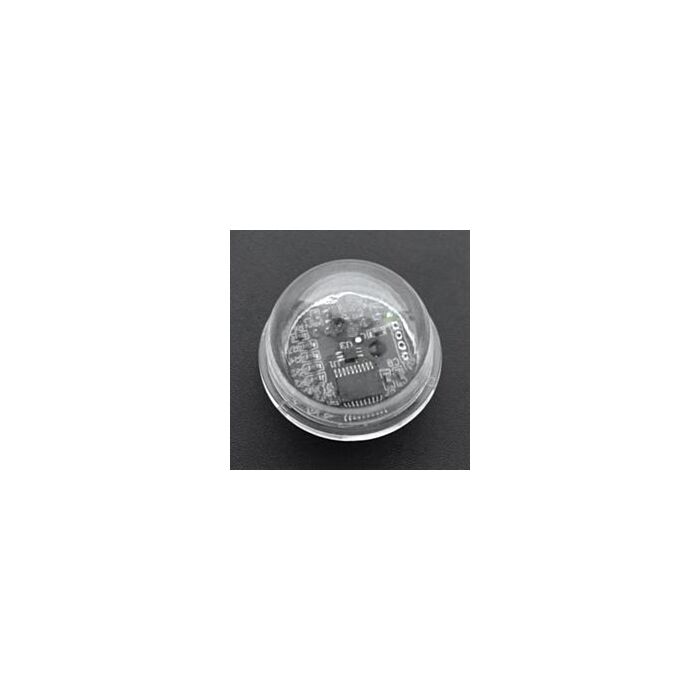

This new ambient light sensor is packaged in a transparent hemisphere case that offers better light-gathering power. The sensor supports a 0-200klx detection range and I2C communication.

The on-chip photodiode’s spectral response is optimized to mimic the human eye’s perception of ambient light and incorporates IR and UV blocking capability. The adaptive gain block automatically selects the correct lux range to optimize the counts/lux. It is ideal for applications such as smartphones, vehicle smart lights, intelligent incubators, etc.

Specification

Supply Voltage	2.7-6V
Operating Current	0.7mA
Detection Range	0-200klx
Accuracy	0.054lx
Communication	I2C
Operating Temperature Range	-40°C~+85°C
Dimension	inner diameter 22mm, outer diameter 26mm, shell diameter 28.5mm, hemisphere height 18mm

Luminance data reference

Evening	0.001-0.02lx;
Moonlit night	0.02-0.3lx;
Cloudy indoor	5-50lx;
Cloudy outdoor	50-500lx;
Sunny indoor	100-1000lx;
Under summer noon light	about 10*6 lx;
Illumination when reading books	50-60lx;
Home video standard illumination	1400lx

Documents

Product wiki
