Adafruit PyBadge for MakeCode Arcade, CircuitPython or Arduino

SKU: ADA4200 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Coming soon! Sign up to be notified when Adafruit have these in stock

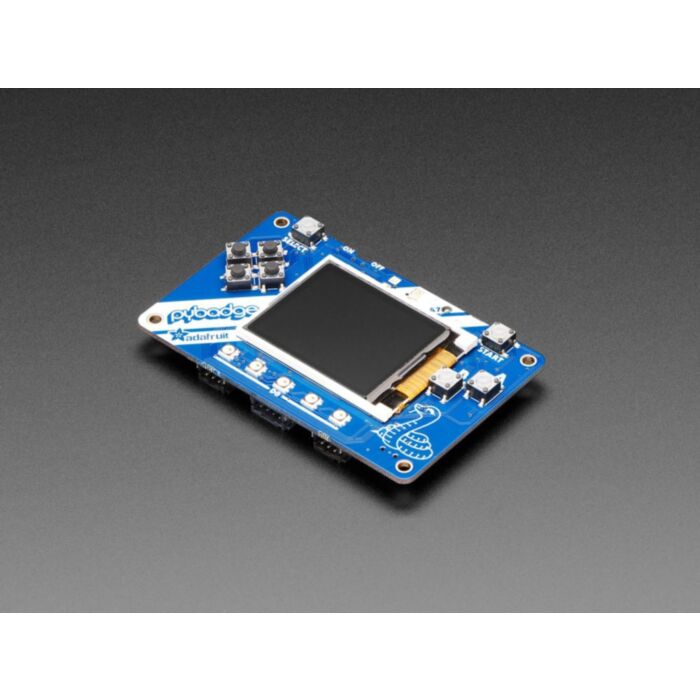

What's the size of a credit card and can run CircuitPython, MakeCode Arcade or Arduino? That's right, its the Adafruit PyBadge! Adafruit wanted to see how much Adafruit could cram into a 3 3⁄8 × 2 1⁄8 inch rounded rectangle, to make an all-in-one dev board with a lot of possibilities, and this is what Adafruit came up with.

The PyBadge is a compact board, like Adafruit said, it's credit card sized. It's powered by Adafruit's favorite chip, the ATSAMD51, with 512KB of flash and 192KB of RAM. Adafruit add 2 MB of QSPI flash for file storage, handy for images, fonts, sounds, or game assets.

On the front you get a 1.8" 160x128 color TFT display with dimmable backlight - Adafruit have fast DMA support for drawing so updates are incredibly fast. There's also 8 silicone-top buttons, they are clicky but have a soft button top so they're nice and grippy. The buttons are arranged to mimic a gaming handheld, with a d-pad, 2 menu-select buttons and 2 fire-action buttons. There's also 5 NeoPixel LEDs to dazzle or track activity.

On the back Adafruit have a full Feather-compatible header socket set, so you can plug in any FeatherWing to expand the capabilities of the PyBadge. There's also 3 STEMMA connectors - two 3-pin with ADC/PWM capability and one 4-pin that connects to I2C - you can use this for Grove sensors as well.

For built in sensors, there's a light sensor that points out the front, and a 3-axis accelerometer that can detect taps and free-fall. To make bleeps and bloops, there's a built in buzzer-speaker. For projects where you need more volume, you can plug in one of Adafruit's 8 ohm speakers.

You can power the PyBadge from any of Adafruit's LiPoly batteries, but Adafruit like this 400mAh one. An on-off switch will save battery power when not in use. Or power from the Micro USB port - it will also charge up the battery if one is attached.

Now, how to program it? Well you've got a lot of options!

MakeCode Arcade is the easiest to start for making games, you can drag-and-drop blocks and load games over the disk-drive bootloader
CircuitPython lets you draw graphics, play wave files and print out text in any fonts - all in Python! There's tons of sensor support as well.
Arduino is low level, powerful, but a little more challenging. You can use Adafruit Arcada to interface with the hardware and it will abstract some of the nitty-gritty details like reading buttons for you.

Here's a list of everything you get

ATSAMD51J19 @ 120MHz with 3.3V logic/power - 512KB of FLASH + 192KB of RAM
2 MB of SPI Flash for storing images, sounds, animations, whatever!
1.8" 160x128 Color TFT Display connected to its own SPI port
8 x Game/Control Buttons with nice silicone button tops (these feel great)
5 x NeoPixels for badge dazzle, or game score-keeping
Triple-axis accelerometer (motion sensor)
Light sensor, reverse-mount so that it points out the front
Built in buzzer mini-speaker
Mono Class-D speaker driver for 4-8 ohm speakers, up to 2 Watts
LiPoly battery port with built in recharging capability
USB port for battery charging, programming and debugging
Two female header strips with Feather-compatible pinout so you can plug any FeatherWings in
JST ports for NeoPixels, sensor input, and I2C (you can fit I2C Grove connectors in here)
Reset button
On-Off switch

Technical Details

Product Dimensions: 85.7mm x 54.6mm x 10.0mm / 3.4" x 2.1" x 0.4"

Product Weight: 29.3g / 1.0oz
