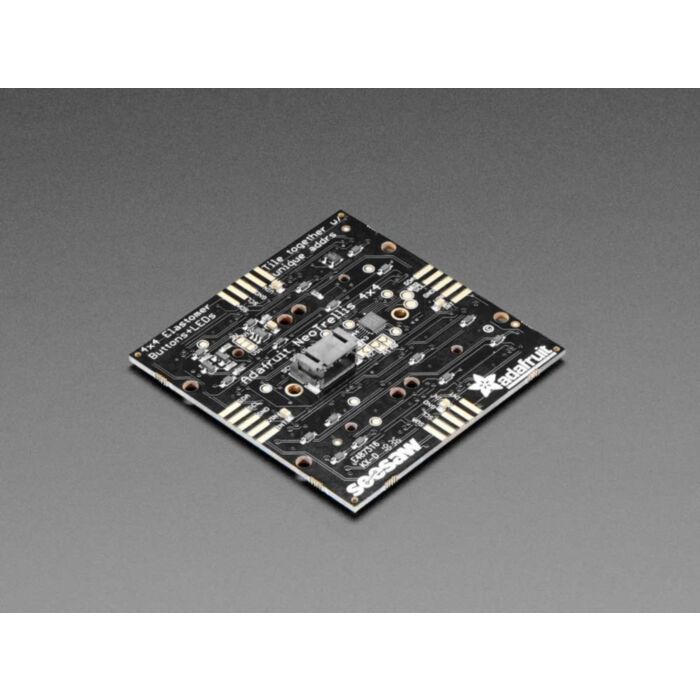

Adafruit NeoTrellis RGB Driver PCB for 4x4 Keypad

SKU: ADA3954 Brand: Adafruit

By popular request, Adafruit have upgraded Adafruit's popular Trellis elastomer button kits to now have a PCB with full color NeoPixel support! You heard that right, no more single-color...

$27.30 AUD, inc GST

$24.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $23.83 (exc GST)
25+ $23.08 (exc GST)

By popular request, Adafruit have upgraded Adafruit's popular Trellis elastomer button kits to now have a PCB with full color NeoPixel support! You heard that right, no more single-color LEDs, you can now have any color you like under the fantastic rubbery button pads Adafruit sell.

These 4x4 button pad boards are fully tile-able and communicate over I2C. With 5 address pins, you've got the ability to connect up to 32 together in any arrangement you like. With Adafruit's trusty seesaw I2C-to-anything chip, you don't even need to manage the NeoPixel driving. That's right! Both the button management and LED driving is completely handled for you all over plain I2C. With both Arduino/C++ and CircuitPython/Python library support, you can use these pads with any and all microcontroller or computer boards.

Perfect for your next cool interface, MIDI instrument, control panel...whatever could benefit from beautiful diffused colorful buttons. For fast connection to a single board, Adafruit include a JST-PH 4-pin connector that will give you power+data access. It's Grove compatible (the cable fits, even though its not the exact same connector), or you can use a JST-PH 4 pin cable.

You can tile up to 32 boards together by soldering them edge-to-edge and soldering closed the I2C address jumpers, then use one I2C connection for all tiled NeoTrellis boards!

Each order comes with one NeoTrellis board with seesaw chip and 16 NeoPixels already soldered in place. Elastomer button pad not included, so be sure to pick one up!

Technical Details

Dimensions: 60mm / 2.4" x 60mm / 2.4" x 4mm / 0.2"
This board/chip uses I2C 7-bit addresses between 0x2E to 0x4D selectable by soldering jumpers on the back of the board.

Product Dimensions: 60.0mm x 60.0mm x 7.5mm / 2.4" x 2.4" x 0.3"

Product Weight: 13.3g / 0.5oz
