Adafruit LM66200 Ideal Dual Diodes Breakout

SKU: ADA5830 Brand: Adafruit

Most projects these days have multiple power supplies: say a battery or DC wall plug or USB for multiple powering options. Juggling these to have seamless...

$5.25 AUD, inc GST

$4.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 14

Quantity Discounts:

10-25 $4.58 (exc GST)
25+ $4.44 (exc GST)

Most projects these days have multiple power supplies: say a battery or DC wall plug or USB for multiple powering options. Juggling these to have seamless hot-swap while avoiding back-powering is always a bit of a challenge: you want to keep things small, cheap, low power and of course reduce as much voltage drop as possible.

The Adafruit LM66200 Dual Ideal Diode breakout is a cute solution to dual supplies: it has back-voltage protection, and two 'ideal' diodes with RdsOn of 40 milliohms, support for 2.5A continuous draw and a separate enable input and status output.

Sure you could DIY the circuitry with multiple transistors, but this is compact and easy to use! Simply connect the two 2~5V power supplies to Vin1 and Vin2, the higher of the two will appear on Vout. Disable the output completely by pulling the On/Enable pin high. Check the Status pin, if desired, to see whether Vin1 or Vin2 is the selected supply.

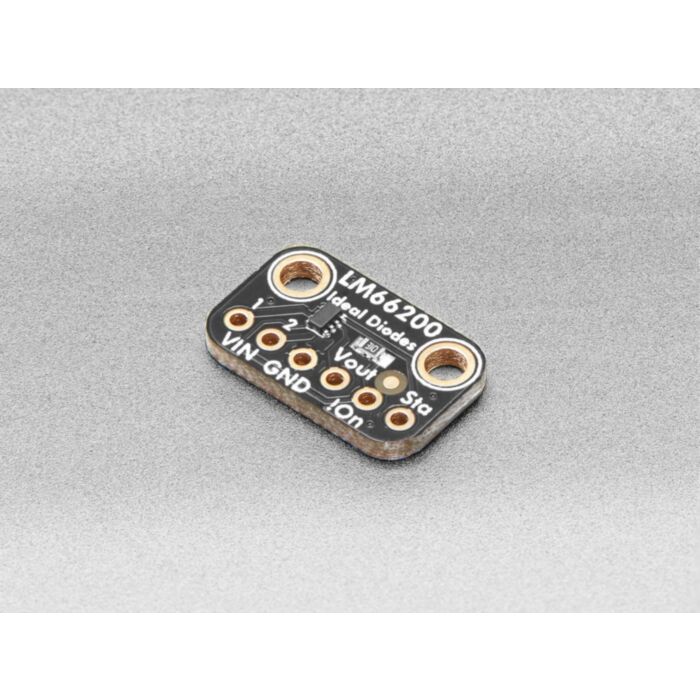

To make it bread-board friendly, Adafruit have placed it on a small PCB with 6 x 0.1" breakout pads. The chip and a 1 Megaohm enable-pulldown is soldered on top. Adafruit include a bit of header, some light soldering is required to attach the header - or use free wiring if you want to insert it directly into a circuit.

Technical Details

LM66200 Product information page
Input voltage range: 1.6 V to 5.5 V
Maximum continuous current: 2.5 A
On-resistance: 40 mO (typical)
Standby current: 50 nA (typical)
Quiescent current: 1.32 µA (typical)
Automatic diode switchover
Controlled output slew rate: 1.3 ms (typical) at 3.3 V
Reverse current blocking when VOUT > VINx
Thermal shutdown

Product Dimensions: 16.5mm x 10.0mm x 2.2mm / 0.6" x 0.4" x 0.1"

Product Weight: 0.5g / 0.0oz
