Adafruit I2C to 8 Channel Solenoid Driver - STEMMA QT / Qwiic

SKU: ADA6318 Brand: Adafruit

Solenoids are a little like cats: if your project has one solenoid you'll probably stick with just one and in such cases our single MOSFET driver will...

Special Price $23.69 AUD, inc GST

Regular Price $31.49 AUD, inc GST

$21.54 AUD, exc GST

Special pricing ends 03 August 2025

* this special may end earlier than shown

Out of Stock

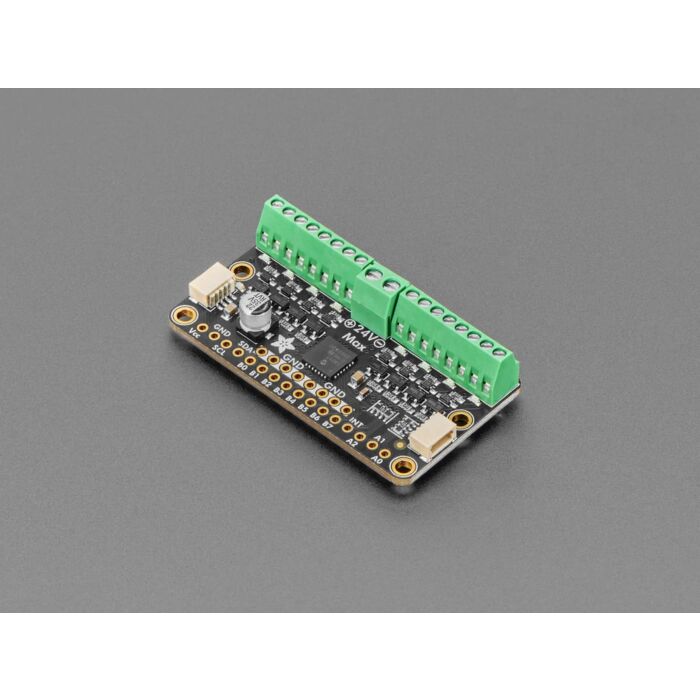

Solenoids are a little like cats: if your project has one solenoid you'll probably stick with just one and in such cases Adafruit's single MOSFET driver will work well. But if you have more than one solenoid, it's going to be anywhere from 2 to 24. Why? Maybe people just love their purring clicky-clacking. And driving a lot of solenoids is kind of a pain: they all need drive transistors and flyback diodes and then a common power source. That's why Adafruit designed the Adafruit I2C to 8 Channel Solenoid Driver featuring an MCP23017 GPIO expander to make eight solenoids at a time easy and solder-free.

This board has an I2C to GPIO expander - so you can use it even if you don't have a lot of pins on your microcontroller. Power the solenoids with a DC power supply in the center terminal blocks, you can use 3V to 24V DC maximum. Then wire up each solenoid to the remaining terminal blocks. The positive side will tie to the power supply you provided, and then the negative side will connect to ground when activated. Each solenoid has its own pass transistor AO3406 N-Channel MOSFET rated for 30Vds, 3.6A peak, and 70mO RdsOn. A flyback diode protects your circuit from the inductive kick-back, and a red LED will light up to let you know that the transistor is on.

Since the MCP23017 has 16 total IO pins, They also bring out the B port, which you can use for other general purpose I/O: as LED drivers, or button inputs. There's also three address pins you can jumper closed so up to 8 boards can be daisy-chained together for a total of 64 solenoids.

The Adafruit I2C to 8 Channel Solenoid Driver can be powered/driven with 3V or 5V power and logic so it's usable by everything from an Arduino-compatible Metro 328 to the latest Raspberry Pi. And the SparkFun Qwiic compatible STEMMA QT JST SH connectors ease the process of connecting the Solenoid Driver to your project and allows you to easily share an I2C bus with other STEMMA QT, Qwiic, Grove, or other compatible sensors. QT Cable is not included, but Adafruit have a variety in the shop.

Technical Details

Product Dimensions: 51.0mm x 28.0mm x 10.2mm / 2.0" x 1.1" x 0.4"

Product Weight: 10.7g / 0.4oz

RoHS 2 2011 65 EU Compliant RoHS 2 2015 863 EU Compliant

This product is listed in:

Breakouts & Modules>Multiplexers
