Adafruit 555 PWM Output STEMMA - 1.4K~25 KHz or 1.4~250 Hz - STEMMA JST PH 2mm

SKU: ADA5963 Brand: Adafruit

How many times have we heard "hey you could have just replaced that microcontroller with a 555"? Maybe 555 times! But we always find wiring up a...

$8.25 AUD, inc GST

$7.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $7.20 (exc GST)
25+ $6.97 (exc GST)

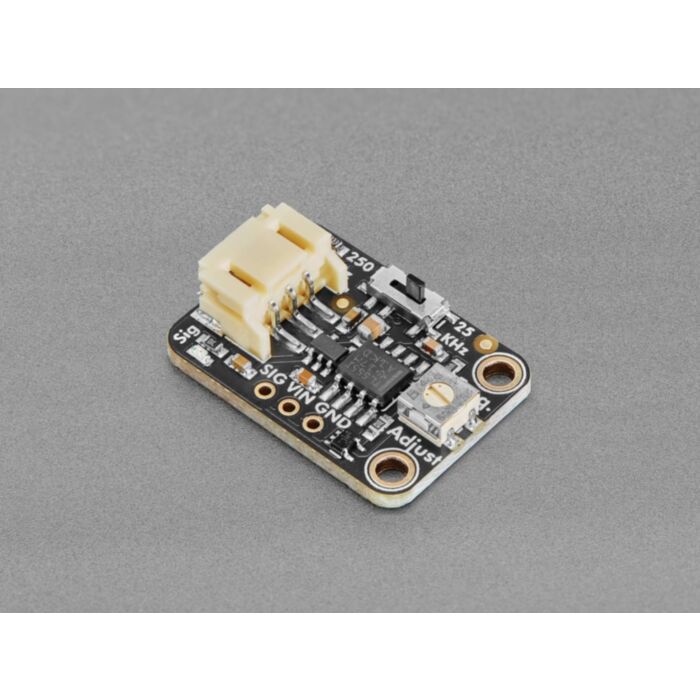

How many times have Adafruit heard "hey you could have just replaced that microcontroller with a 555"? Maybe 555 times! But Adafruit always find wiring up a timer chip to be a bit of a pain, you need quite a few components - especially if you want a buffered output. That's why Adafruit designed the Adafruit 555 PWM Output STEMMA - a fully-assembled 555 timer board with adjustable PWM square-wave output.

Adafruit originally came up with this idea when someone requested Adafruit make a 'PC Fan Dummy' board, that can generate a 100Hz signal for faking a PC fan's tachometer signal to a motherboard. But then Adafruit thought that sometimes Adafruit want a square wave for driving a piezo, or as an audio input, or to modulate an IR signal. so they made it a little more general-purpose.

You can select between two 'ranges': approximately 1.4K~25 KHz or 1.4~250 Hz. The onboard trimmer pot will tune the actual output between those values. You can use a logic analyzer, oscilloscope, multimeter with frequency-counting, or even an audio input jack on a computer, to determine the precise value if you need more than a rough number. The output is a DC square wave, driven by a 74HC1G04buffer so it can sink/source up to 12.5mA.

You can power the board from 3V to 12VDC, an onboard regulator will pin the input to the 555 and buffer to 5V max. That means that between 3V and 5V power, the signal peak will be at the same logic level as the power. Above 5V, the output will be pegged to 5V.

Each STEMMA board is a fully assembled and tested PCB but no cable. No soldering is required to use it, but you will need to pick up a 2mm pitch, 3-pin STEMMA JST PH cable. Alternatively, if you do want to solder, there's a 0.1" spaced header for power/ground/signal.
