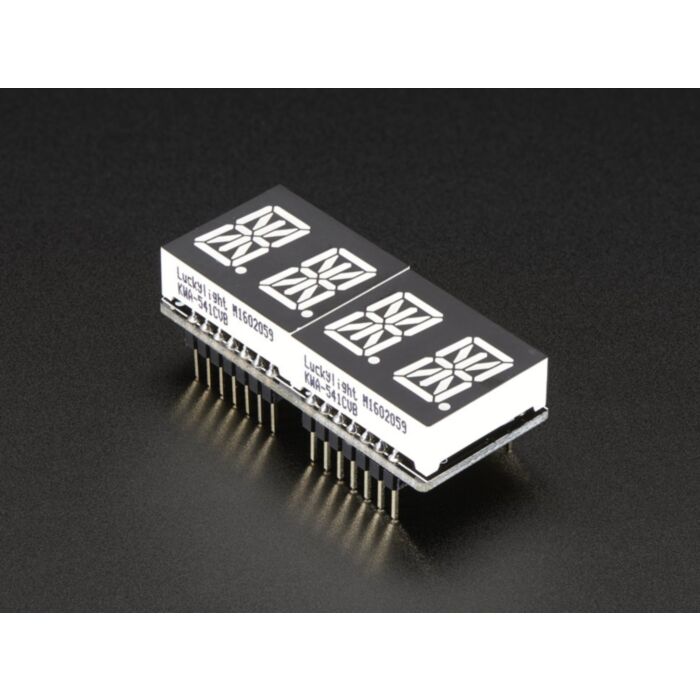

Adafruit 0.54" Quad Alphanumeric FeatherWing Display - Green

Rating:
100% of 100
SKU: ADA3129 Brand: Adafruit
Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet. You get the point.
$27.75 AUD, inc GST
$25.23 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 05 and Jul 11

Quantity Discounts:

  • 10-25 $24.22 (exc GST)
  • 25+ $23.46 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet. You get the point.

This is the Green Adafruit 0.54" Dual Alphanumeric FeatherWing Display Combo Pack! They also have these combo packs in BlueRedWhiteYellow-Green, and Yellow.

This is a nice, bright alphanumeric display that shows letters and numbers in a beautiful hue. It's super bright and designed for viewing from distances up to 23 feet (7 meters) away. Each of the digit sets have 14 segments on a dark background and Adafruit give you a set of two alphanumeric displays as well as a Featherwing driver board so you can make a clock or a four letter word.

Works with any and all Feathers!

14-Segment Matrices like these are 'multiplexed' - so to control all the fourteen-segment LEDs you need 18 pins. That's a lot of pins, and there are driver chips like the MAX7219 that can control a matrix for you but there's a lot of wiring to set up and they take up a ton of space. Wouldn't it be awesome if you could control a matrix without tons of wiring? That's where these Alphanumeric LED Matrix FeatherWings come in, they make it really easy to add a 4-digit alphanumeric display with decimal points.

The LEDs themselves do not connect to the Feather. Instead, a matrix driver chip (HT16K33) does the multiplexing for you. The Feather simply sends i2c commands to the chip to tell it what LEDs to light up and it is handled for you. This takes a lot of the work and pin-requirements off the Feather. Since it uses only I2C for control, it works with any Feather and can share the I2C pins for other sensors or displays.

The product kit comes with:

Of course, in classic Adafruit fashion, They also have a detailed tutorial showing you how to solder, wire and control the display. We even wrote a very nice library for the backpacks so you can get running in under half an hour, displaying images on the matrix or numbers on the 14-segment. If you've been eyeing matrix displays but hesitated because of the complexity, his is the solution you've been looking for!

Technical Details

The board/chip uses 12C 7-bit address between 0x70-0x77, selectable with jumpers
  • FeatherWing Dimensions: 51mm x 23mm x 4.2mm / 2.0" x 0.9" x 0.165"
  • Backpack Weight: 4.6g
  • Dual Alphanumeric Display Dimensions: 21mm x 25mm x 7mm / 0.8" x 1" x 0.3"
  • Dual Alphanumeric Display Height w/ Pins: 14mm / 0.6"
  • Dual Alphanumeric Display Weight: 4.7g
  • The Dual Alphanumeric Display is a Common Cathode LED display
