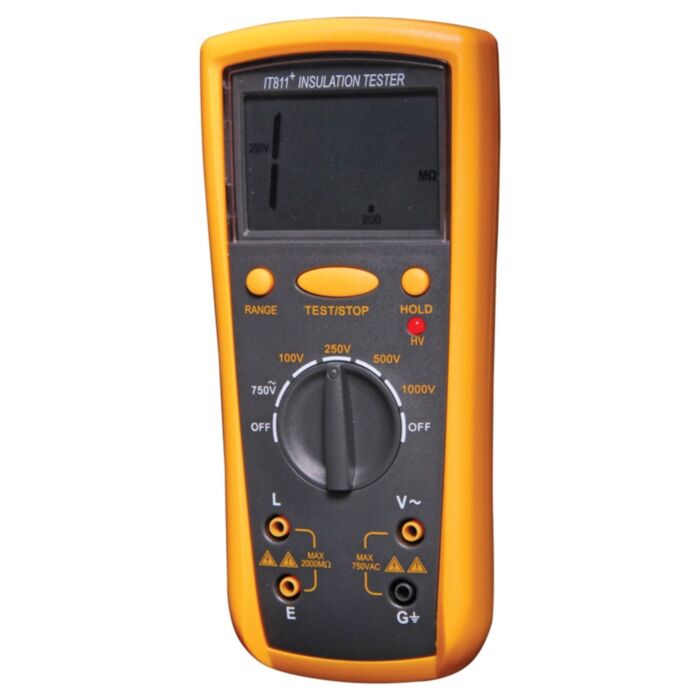

8 Range Digital Insulation Tester 1000V

Rating:
100% of 100
SKU: AQ1242A Brand: Core Electronics
Insulation testers measure the electrical insulation strength between two conductors by applying a high voltage across them and measuring any current that flows. This is to test for “leakage” paths and insulation breakdown in electrical circuits. eg checking house wiring for leakage between active and neutral conductors or testing electrical appliances such as toasters, irons etc. This model features two resistance test ranges; 200MΩ and 2000MΩ with four test voltages on each range; 100V, 250V, 500V and 1000V. It also has auto power off to maximise battery life. The included high quality silicon test leads are designed specifically for insulation tester use and have removable alligator clip adaptors. Supplied with rubber holster and soft protective carry case. Features 200MΩ and 2000MΩ ranges Backlit LCD readout “Push to test” activation Auto power off Rubber holster Data hold High quality PVC leads Alligator clip lead adaptors Battery included Cat II 600V
$139.95 AUD, inc GST
$127.23 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 22 and Nov 25

Quantity Discounts:

  • 5-10 $122.14 (exc GST)
  • 10+ $118.32 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Insulation testers measure the electrical insulation strength between two conductors by applying a high voltage across them and measuring any current that flows. This is to test for “leakage” paths and insulation breakdown in electrical circuits. eg checking house wiring for leakage between active and neutral conductors or testing electrical appliances such as toasters, irons etc. This model features two resistance test ranges; 200MΩ and 2000MΩ with four test voltages on each range; 100V, 250V, 500V and 1000V. It also has auto power off to maximise battery life. The included high quality silicon test leads are designed specifically for insulation tester use and have removable alligator clip adaptors. Supplied with rubber holster and soft protective carry case.

Features

  • 200MΩ and 2000MΩ ranges
  • Backlit LCD readout
  • “Push to test” activation
  • Auto power off
  • Rubber holster
  • Data hold
  • High quality PVC leads
  • Alligator clip lead adaptors
  • Battery included
  • Cat II 600V



Specifications

  • Insulation test range: 200MΩ, 2000MΩ (±3%+5d)
  • Test voltage: 100V, 250V, 500V, 1000V
  • Display: 3.5 digit, 1999 count
  • Dimensions: ≈ 93W x 55D x 201H mm
