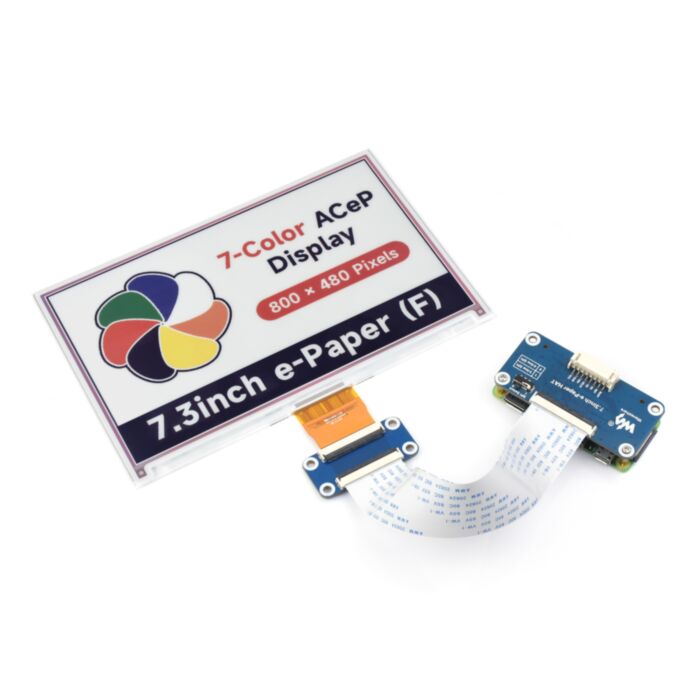

7.3inch ACeP 7-Color E-Paper E-Ink Display Module, 800×480 Pixels, SPI Communication

SKU: WS-23434 Brand: Waveshare
7.3inch ACeP 7-Color E-Paper E-Ink Display Module, 800×480 Pixels, SPI Communication...
$129.95 AUD, inc GST
$118.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 5-10 $113.41 (exc GST)
  • 10+ $109.86 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Utilising Advanced Color ePaper (ACeP) technology, this display supports up to seven colors. It doesn't require a backlight, meaning it can retain the last displayed content even when powered off. Its design ensures minimal power consumption, needing energy only to refresh the display. Equipped with a standard Raspberry Pi 40-pin GPIO extension header, it is compatible with Raspberry Pi boards and Jetson Nano. The SPI interface allows connections with various controller boards, including Raspberry Pi, Jetson Nano, Arduino, and STM32. Additionally, it has an onboard voltage translator to work seamlessly with both 3.3V and 5V microcontrollers.



Specifications

Operating Voltage: 3.3V/5V

Display Colour: 7-Colour

Interface: 3-wire SPI, 4-wire SPI

Grey Scale: 2

Outline Dimensions: 170.2 × 111.2mm

Full Refresh Time: 35s

Display Size: 160 × 96mm

Refresh Power: <49.4mW (typ.)

Dot Pitch: 0.2 × 0.2 mm

Standby Current: <0.01uA (almost none)

Resolution: 800×480 pixels

Viewing Angle: >170°



Pinout

VCC Power (3.3V / 5V input)
GND Ground
DIN SPI MOSI pin
SCLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output pin

Dimensions



Resources

Shipping List

  1. 1 x 7.3inch e-Paper (F)
  2. 1 x Driver Board and FFC cable
  3. 1 x PH2.0 20cm 8Pin
  4. 1 x RPi screws pack (2pcs)
