6 DOF IMU Shield

SKU: DFR0209

$55.79 AUD, inc GST
$50.72 AUD, exc GST

More Views

6 DOF IMU Shield
55.79 AUD

SKU: DFR0209

$55.79 AUD, inc GST
$50.72 AUD, exc GST
1 reviews 0 5 5

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 59 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 27th of Nov with Express Post within Australia.

Shipping Offer

Introduction

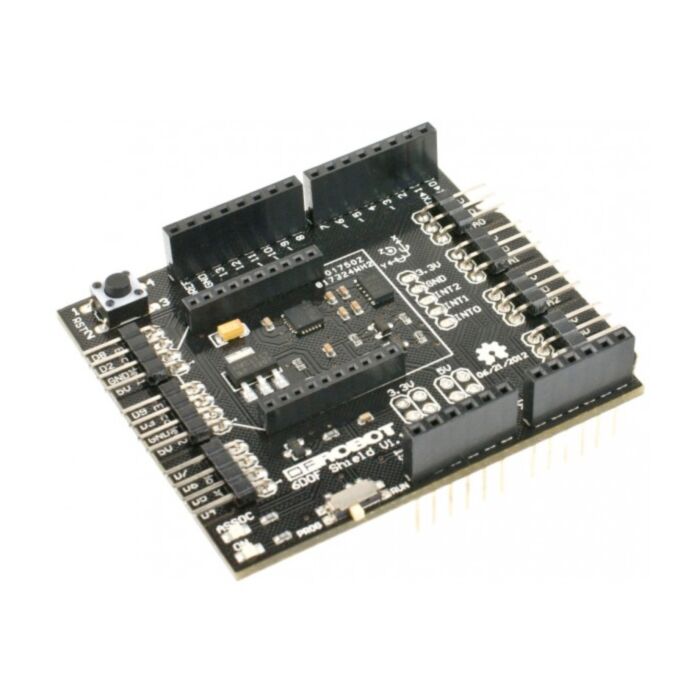

This is a 6 Dof IMU shield for Arduino, using the ADXL345 accelerometer and the ITG-3200 gyro.This IMU Combo shield also embeded a xbee sockets. So it's suitable for the projects that need bluetooth, wifi or Zigbee wireless communication.And the shield extends a pair of the encoders, the motor driver interface and 4 analog input connectors.

It's aimed to run on the balancing robots or mobile platforms. The encoder and motor driver interfaces are the necessary parts of the your robots. Plugin the rotation sensors to the analog connectors, then you get the most easy way to adjust the system parameters and debug the platform.

Applications
  • Motion-enabled game controllers
  • Personal navigation devices
  • Balancing robots
  • Industrial instrumentation

Specification
  • Working voltage: 5v and 3.3v
  • Interface: I2C(SCL,SDA)
  • Connecters:
    • 2 way encoder connectors by using D2,D3,D8,D9
    • 2 way motor driver connector by using D4,D5,D6,D7
    • 4 way analog input connector (A0~A3)
  • Embeded the ADXL345 accelerometer and the ITG-3200 gyro
  • Directly support Xbee and XBee form factor wifi,bluetooth and RF modules
  • Compatible with Arduino Uno DFRduino UNO
  • A programming switch used to disable wireless communication when programming
  • Size: 65x55x20mm
  • Compatibility issues for V1.2
    • Not compatible with older than Arduino R3 (check wiki for compatibility fix)
    • Compatible with Leonardo and latest Arduino boards

Shipping List
  • 6 Dof shield v1.1    1unit
