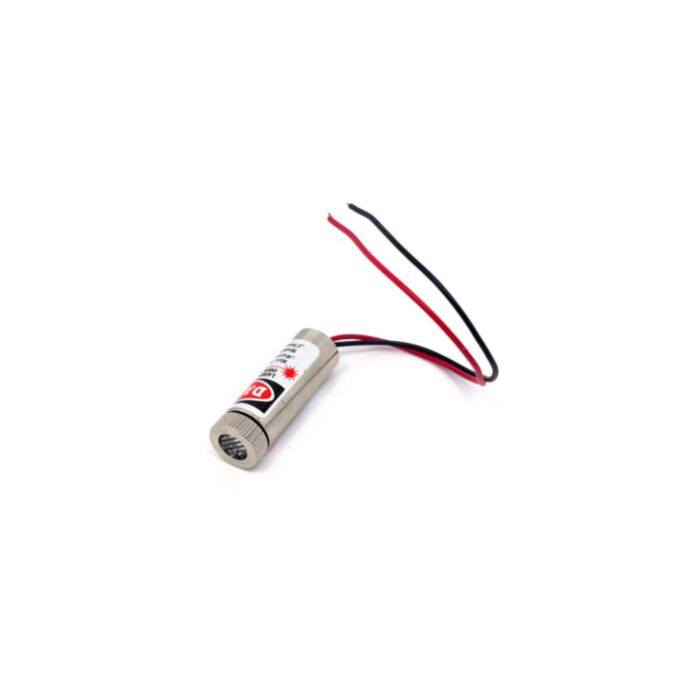

5mW Laser Module emitter - Red Line

SKU: SS104990021

$8.93 AUD, inc GST
$8.12 AUD, exc GST

More Views

5mW Laser Module emitter - Red Line
8.93 AUD

SKU: SS104990021

$8.93 AUD, inc GST
$8.12 AUD, exc GST
1 reviews 0 5 1
In stock, with a short lead time. 8 units dispatch in 6 to 14 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 1st of Nov with Express Post within Australia.

Specifications

  • Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW

  • Working current: Min 10mA, Typical 20mA, Max 25mA

  • Working voltage: Min 2.3VDC, Typical 4.5VDC, Max 8.0VDC

  • Wavelength: 650nm

  • Working Temperature: Min -15℃, Typical 25℃, Max 35℃

  • Storage Temperature: Min -20℃, Max +25℃

  • Focused Dot width: <2mm spotting 3 meters away.

  • Outline Dimension:  12mm(Diameter) x 35mm(Length)

  • Practical test for point head: reflection visible to random target >1000m

Cautions: Class III, avoid direct eye exposure to beams.


Datasheet








This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments


Customer Reviews

  1. Review by Chris verified purchaser
    Rating
    20

    For some reason I can't get this to work. A problem I seem to have with Seeed lasers, which is weird because all their other products are usually quality. Should be simple enough to work with only two leads. So, it might just be a faulty unit. Also found it difficult to find supporting info on Seeed's website. (Posted on 26/04/2017)
