32.768 KHz Crystal - 12.5pF capacitor load

SKU: ADA2211

$1.95 AUD, inc GST
$1.77 AUD, exc GST

More Views

32.768 KHz Crystal - 12.5pF capacitor load
1.95 AUD

SKU: ADA2211

$1.95 AUD, inc GST
$1.77 AUD, exc GST
In stock, with a short lead time. 136 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Oct with Express Post within Australia.

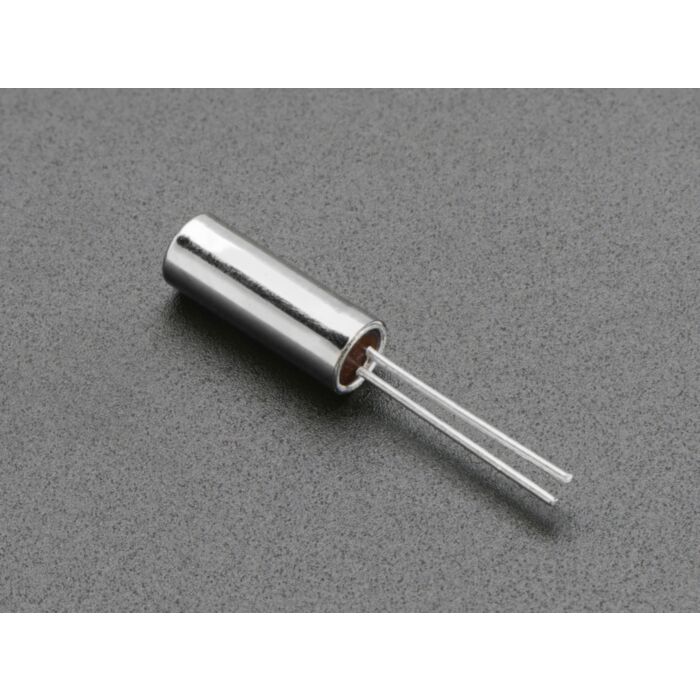

Keep your microcontroller or real-time-clock tickin' with a a fancy timing crystal. This 32.768 KHz model comes in a cylindrical style standard package and is breadboard friendly and easy to use with any microcontroller, RTC or device that requires an external crystal.

The crystal has 12.5pF load capacitance requirements and is ideal for use when you have a real-time clock or other ultra-power chip.

To use, connect the two pins to XTAL-in and XTAL-out on your circuit (the package is symmetric so use whichever pin). Check your microcontroller datasheet in case you also need a 1 Megaohm resistor or any other components, usually 32.768KHz crystals do not require capacitors.

Technical Details

Datasheet

  • Pin Length: 9mm / 0.35"
  • Overall Height: 17mm / 0.67"
  • Diameter: 3mm / 0.12"
Documentation and Resources:
