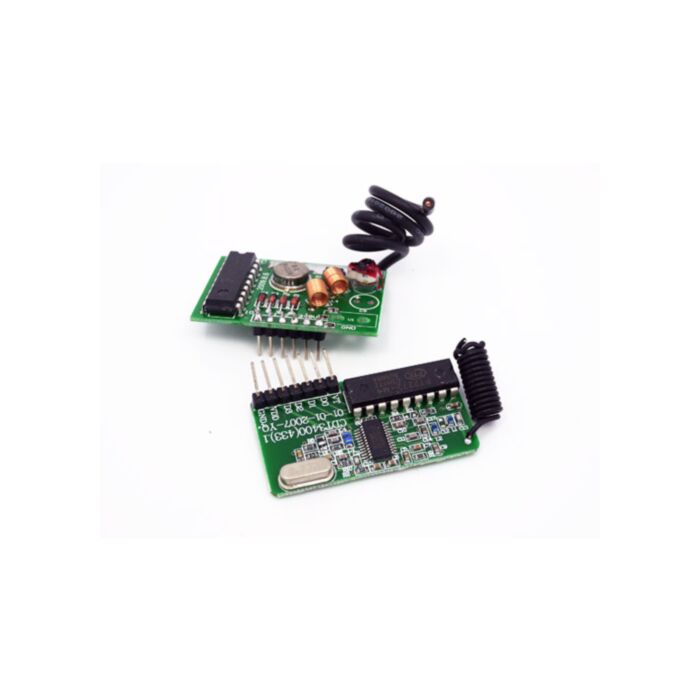

2KM Long Range RF link kits w encoder and decoder (Seeed Studio)

Rating:

100% of 100

SKU: SS113990018 Brand: Seeed Studio

This is a super long range 433mhz RF link kit Comes with VCO , PLL technology, steady Frequency and super anti-jamming ability. You can directly use it...

$36.75 AUD, inc GST

$33.41 AUD, exc GST

Quantity Discounts:

10-25 $32.07 (exc GST)
25+ $31.07 (exc GST)

Out of Stock

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

This is a super long range 433mhz RF link kit Comes with VCO , PLL technology, steady Frequency and super anti-jamming ability. You can directly use it with your project like wireless data transport and remote control etc.

Specification

Working voltage: Receiver(3-5V), Transmitter(3-9V)
Working current: 2.5mA(5.0VDC)
Principle of work: Superhet (VCO, PLL)
Modulation: OOK/ASK
Working band: 433.92MHz (customize service available)
Bandwidth: 1.5MHz
Sensitivity: -105dBm (50Ω)
Rate: < 5Kbps
Decoding form: PT2272
Antenna length: 18cm
Emission Distance: 2 KM
Dimensions: Encoder: 14.75W x 32.50L, Decoder: 16.20W x 36.10L

Example

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

Datasheet for PT2272 and PT2262

This product is listed in:

Wireless>General RF>Transceivers
