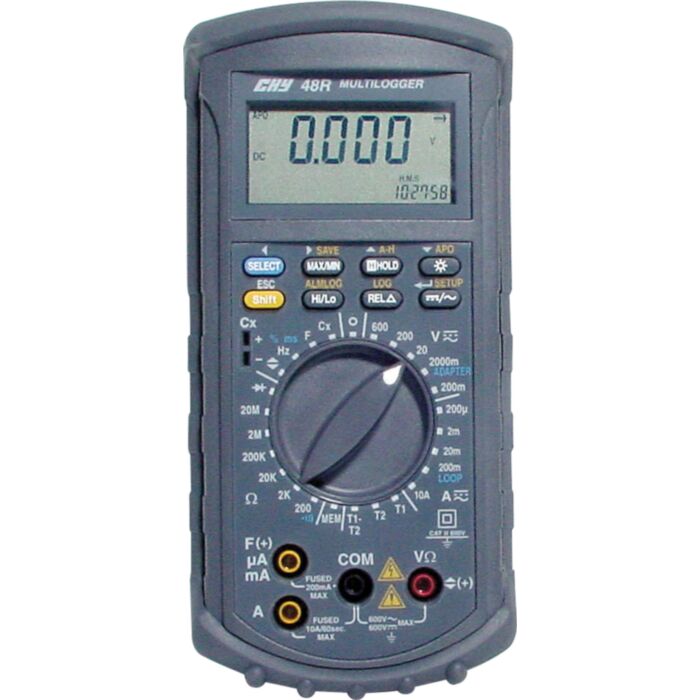

25 Range Datalogger Digital Multimeter

SKU: AQ1190

$289.00 AUD, inc GST
$262.73 AUD, exc GST

More Views

25 Range Datalogger Digital Multimeter

SKU: AQ1190

$289.00 AUD, inc GST
$262.73 AUD, exc GST

Retired Product

Replaced by: digital multimeter
This product has been replaced by: digital multimeter
A versatile 4.5 digit 19999 count display DMM that includes a powerful datalogger with adjustable sample rate. It can store up to 6500 samples of real time data in logging mode, or up to 32000 manually saved events. The data is stored in internal memory and may be downloaded to a PC for later analysis. The unit has an auxiliary DC power input connector and auto power off override allowing it to be used for long datalogging sessions without flattening the battery. It is supplied complete with two thermocouples, a shock-proof rubber holster and all software, test and interface leads are included. A professional quality instrument perfect for on-site or laboratory use.

Features

  • Optical RS-232 interface to PC computer
  • Windows software - suits XP/Vista/7
  • 4.5 digit 19999 count display
  • Adjustable sample time
  • Up to 6500 log samples stored internally
  • Up to 32000 individual manually saved events
  • High & Low alarm output & beeper
  • Twin temp probes with T1-T2 range
  • Relative mode measurement
  • Capacitance measurement
  • Continuity and diode test
  • Logic test
  • Frequency counter & duty cycle range
  • Pulse width measurement
  • Fused 10A input
  • Back lit display
  • Data hold and run mode
  • Time of day clock
  • Auto power off and “keep on” mode
  • 12VDC external power input
  • Max/min & average display
  • Battery included


Specifications

  • DC voltage:200mV, 2000mV, 20V, 200V, 600V
  • AC voltage:200mV, 2000mV, 20V, 200V, 600V
  • DC current:200µA, 2mA, 20mA, 200mA/LOOP, 10A
  • AC current:200µA, 2mA, 20mA, 200mA, 10A
  • Resistance:200 Ohm, 2k Ohm, 20k Ohm, 200k Ohm, 2000k Ohm, 20M Ohm
  • Frequency:2Hz to 10MHz
  • Duty Cycle:10% to 90%, 0.5Hz to 1kHz
  • Pulse Width:20ms, 200ms, 2000ms
  • Capacitance:2000pF to 20µF and 200µF to 15mF
  • Temperature:-50°C to ˜1300°C
  • Logic test:Hi >2.8V, Lo <0.8V, 0 to 20MHz
  • Diode test:Test voltage 2.2VDC
  • Continuity test:Less than 30 Ohm
  • Protection:500mA M205 fused, 10A 8AG fused
  • Dimensions:˜ 91W x 53D x 192H
