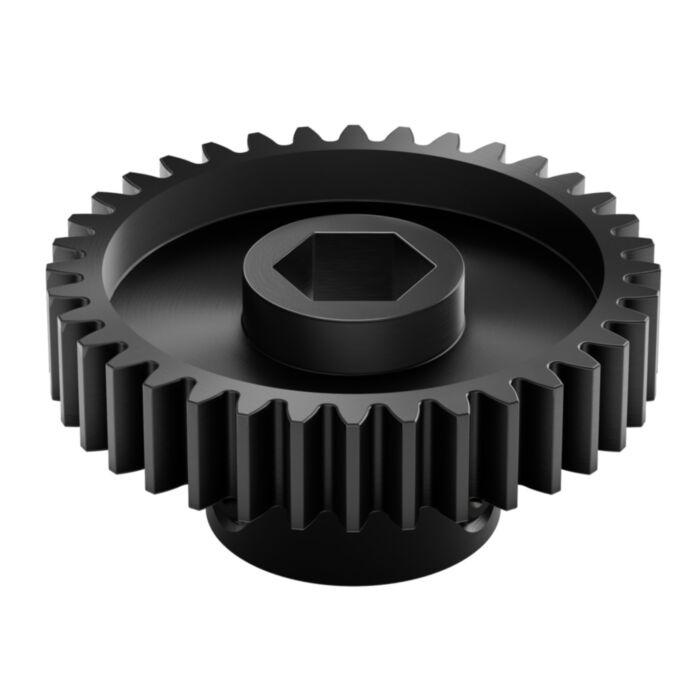

2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 36 Tooth)

SKU: GB-2303-4008-0036 Brand: goBilda

This 36 tooth 8mm REX bore pinion gear is ready to rip! The bore perfectly matches our

$22.65 AUD, inc GST

$20.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 29th of Jul

Quantity Discounts:

10+ $19.56 (exc GST)
25+ $18.53 (exc GST)

This 36 Tooth, MOD 0.8 Steel Pinion Gear has an 8mm REX™ bore for positive drive on goBILDA® signature 8mm REX™ profile shafting.

A MOD 0.8 gear with 84 teeth or 24 teeth is the perfect partner for this gear when you’re building on the goBILDA® pattern and want to create a 2.33:1 or 1.5:1 ratio. Of course, this gear can mesh with any MOD 0.8 gear to produce an underdrive or overdrive ratio—depending on if you’d like to increase the speed, or maximize torque—and it goes without saying that you can retain the same speed and torque in the motion transfer the via a good ol’ 1:1 ratio with a fellow 36 tooth gear!

The built-in shim on the bottom of the gear provides clearance for the outer race of the bearing. Similarly, the counterbore on the top of the gear provides the same built-in convenience when the gear is oriented such that the teeth of the gear are nearest the bearing.

Downloads

Specs

Weight	27g
Material	Steel
Finish	Black Zinc-Plated
Tooth Count	36
Gear Pitch	MOD 0.8
Pressure Angle	20 Degree

This product is listed in:

goBILDA>MOTION>Gears>Pinion Gears>8mm REX Pinion Gears
