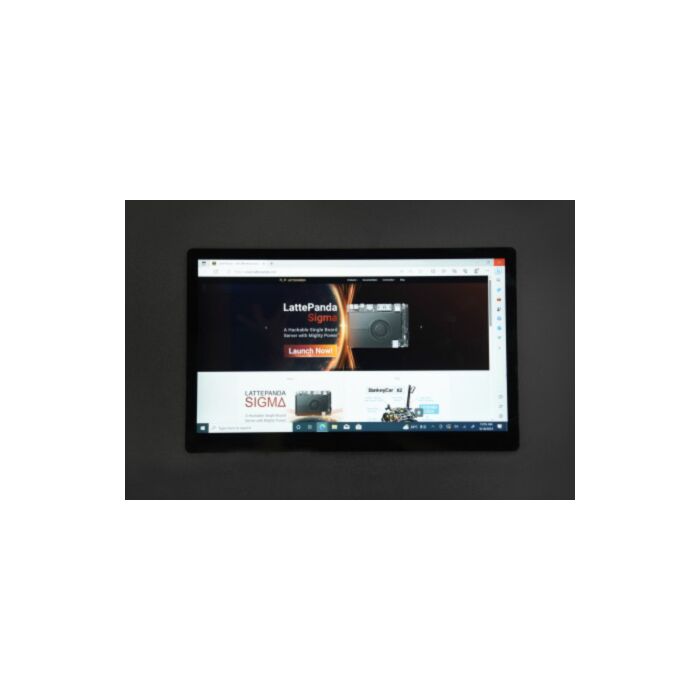

15.6 Inch 1920x1080 IPS Type-C Touch Screen & Display

SKU: DFR1045 Brand: DFRobot
Experience high-definition visuals with this 15.6-inch IPS touch display. Compatible with Raspberry Pi, LattePanda, and Jetson Nano, it offers versatile...
$444.95 AUD, inc GST
$404.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

  • 3-5 $392.36 (exc GST)
  • 5+ $384.27 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Featuring a 15.6-inch capacitive touch display, this product stands out with its high resolution of 1920x1080, full-function Type-C and HDMI dual display interfaces, IPS hard screen technology, optical bonding, and support for ten-point capacitive touch. It exhibits extensive compatibility, capable of connecting with single-board computers such as the LattePanda series, Raspberry Pi 4B, Jetson Nano, as well as various desktop computers, laptop computers, mini PCs, industrial computers, and tablet computers. It is suitable for use in human-machine interaction scenarios, such as terminal device control panels, IoT control panels, and more.

Superior Performance Parameters

This 15.6-inch large screen display boasts a high resolution of 1920x1080, ensuring clear visual effects. It adopts IPS hard screen technology and an optical bonding process, further enhancing the display effect. The surface is treated with anti-glare, enhancing the user experience. In addition, it also supports ten-point capacitive touch.

15.6-inch 1920x1080 ten-point capacitive touch display

Multi-functional Type-C Interface

Equipped with two full-featured Type-C interfaces, supporting blind plugging, eliminating the need for users to specifically distinguish between data ports and power ports. These interfaces can achieve audio transmission, video transmission, and touch function through a Type-C data cable, while also supporting reverse PD power supply, providing power for the connected devices.

Full-featured Type-C interfaces

Multiple Interface Design

In addition to the multi-functional Type-C interface, this display also retains the traditional HDMI interface to ensure compatibility with more HDMI output devices.

Supports both Type-C and HDMI video transmission methods

Wide Compatibility

The display is suitable for various single-board computers, including but not limited to LattePanda Sigma, LattePanda 2 Alpha, LattePanda 2 Delta, LattePanda 3 Delta, Raspberry Pi 4B, and Jetson Nano. In addition, it is also compatible with various desktop computers, laptop computers, mini PCs, industrial computers, and tablet computers.

Compatible with Raspberry Pi 4B, LattePanda, LattePanda Alpha/Delta, and LattePanda Delta 3 installations.

Easy to Integrate

The display supports the installation of the LattePanda series and Raspberry Pi 4B development boards, providing more convenient choices for project integration.

Easy to Integrate

Features

  • Supports ten-point capacitive touch
  • Supports dual-channel audio output
  • Supports both Type-C and HDMI video transmission methods
  • The full-featured Type-C interface allows single-line connection for video, audio, and touch signals, and supports reverse PD power delivery.
  • Type-C does not require distinguishing between power and data interfaces, supporting blind insertion.
  • Compatible with Raspberry Pi 4B, LattePanda, LattePanda Alpha/Delta, and LattePanda Delta 3 installations.
  • Compatible with various desktop computers, laptops, mini PCs, industrial computers, and tablets.

    • Applications

  • Human-Machine Interaction Panel
  • Terminal Control Panel
  • IoT Control Panel

    • Specification

    Screen parameters

  • LCD size: 15.6 inches
  • Resolution: 1920×1080
  • Pixel pitch (um): 179.25(H) × 179.25(V)
  • Pixel arrangement : RGB Vertical Stripe
  • Color gamut: 45%
  • Display colors: 262k (6-bit)
  • Active area(mm): 344.16(H)×193.59(V)
  • Surface treatment: Anti-Glare
  • Surface hardness: 3H
  • Brightness: 250cd/m²
  • Refresh rate: 60Hz
  • Transmittance: =86%
  • View angle: Full-view angle
  • Number of touch: 10
  • Touch panel hardness: =6H
  • Bonding method: Optical bonding
  • Outline dimension(mm): 369.5(H)×288.6(V)×5.2(D)
  • Interface: eDP
  • LCD brand: BOE
  • Operating temperature: 0°C ~ +50°C
  • Weight: 766g

    • Display driver board parameters

  • Display interface: Type-C/HDMI
  • Speaker interface: MX1.25-4P
  • Touch interface: Type-C
  • Power interface: Type-C
  • Power voltage: PD3.0, 5~20V
  • Mounting hole size: Hole diameter 3.0mm
  • PCB size(mm): 125(V)×110(H)×1.6(D)

    • Touch control board parameters

  • Touch chip: ILI2511
  • Touch interface: MX1.25-4P
  • Mounting hole size: Hole diameter 3.0mm
  • PCB size(mm): 50(H)×26(V)×4.8(D)

    • Documents

  • Product wiki
  • 3D File
  • 2D File

    • Parts List

  • 15.6" 1920×1080 IPS Type-C Capacitive Touch Screen ×1
  • Display Driver Board ×1
  • Touch Control Board ×1
  • eDP Screen Connection Cable 210mm ×1
  • Dual-Head MX1.25-4P Touch Screen Cable ×1
  • HDMI A to A Adapter Module for LattePanda Delta 3 ×1
  • HDMI A to A Adapter Module for LattePanda Delta/Alpha ×1
  • HDMI A to D Adapter Module for Raspberry Pi ×1
  • M3×6+8mm Single-Head Copper Pillar × 5
  • M3×6+9mm Single-Head Copper Pillar × 5
  • M2.5×6+8mm Single-Head Copper Pillar ×5
  • M3×6 Round Head Screw × 5
  • M2.5×6 Round Head Screw ×5
  • Product Certificate and Warranty Card ×1
