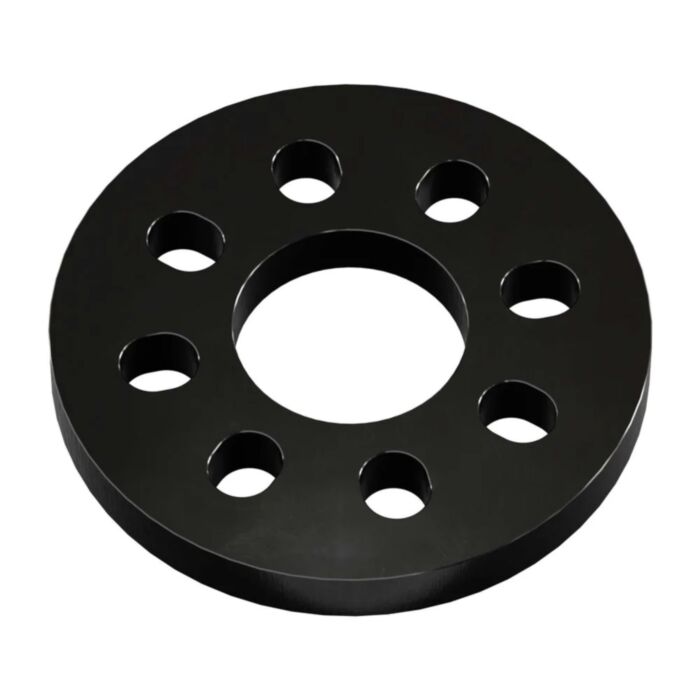

1519 Series goTUBE Endcap (14mm Bore, 36mm OD, 4mm Thick) - 4 Pack

Turn the open end of a 4103 Series tube into a bolt-on flange, and axially constrain it in a motion assembly without machining a thing. Four M4 screws into the end of the tube is all it takes.

Tubing that creeps through its own bearing is a familiar headache. At 36mm outer diameter, this endcap is sized to contact the inner race of a 32mm bore bearing, so the tube is positively constrained rather than free to wander.

Made from acetal(Delrin), each cap adds only 4.2g to a rotating assembly. Eight Ø4mm clearance holes across 16mm and 24mm spacings let you index the cap to whichever pattern lines up, and the 14mm central bore leaves room for a shaft or fastener to pass straight through.

At just 4mm thick, it stays compact enough to fit and rotate inside 1120 Series U-Channel, and pairing it with a 1505 Series Counterbored Pattern Spacer reverses the direction of constraint when you need it the other way around.

Features

• Adds only 4.2g per cap to a rotating assembly, thanks to lightweight acetal construction
• 36mm outer diameter contacts the inner race of a 32mm bore bearing, giving the tube a positive axial stop
• Eight Ø4mm holes across two spacings give you multiple indexing options when bolting to the tube end
• 4mm profile fits and rotates inside 1120 Series U-Channel, so it suits tight internal assemblies
• Combines with a 1505 Series Counterbored Pattern Spacer to constrain the tube in the opposite direction
• Genuine goBILDA part, so it lands exactly on the system's M4 hardware, 32mm bearings and pillow blocks

Specifications

Resources

• STEP file (1519-0014-0400)

What's Included

• 4x 1519 Series goTUBE Endcap (14mm Bore, 36mm OD, 4mm Thick)

M4 screws and washers are sold separately.
