1513 Series Offset Standoff (4mm Length) - 4 Pack

SKU: GB-1513-0001-0004 Brand: goBilda

For those times where it would be helpful to have holes offset 4mm from the original locations. Offset standoffs have three mounting...

$10.05 AUD, inc GST

$9.14 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 07 and Jan 10

Quantity Discounts:

10-25 $8.68 (exc GST)
25+ $8.23 (exc GST)

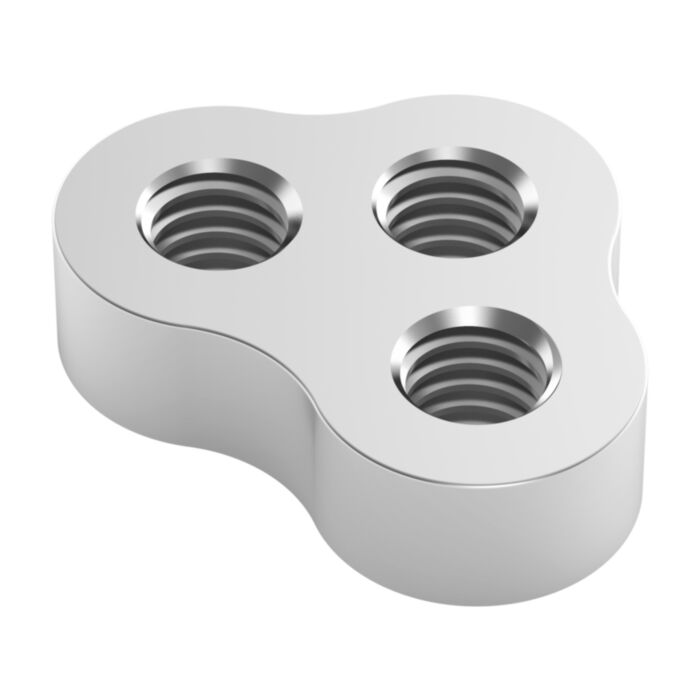

For those times where it would be helpful to have holes offset 4mm from the original locations. Offset standoffs have three mounting holes. Two holes are spaced 8mm apart to align with the grid pattern. The third hole is horizontally centered between the first two, and vertically offset by 4mm. This opens up some build options you would not otherwise be able to tap into. Offset standoffs pair well with V-Wheels and W-Wheels which call for very specific mounting distances when used in conjunction with V-Guide as a linear motion support mechanism.

Downloads

STEP File

Specs

Weight	1.1g Each
Material	Aluminum
Finish	Clear Anodized
