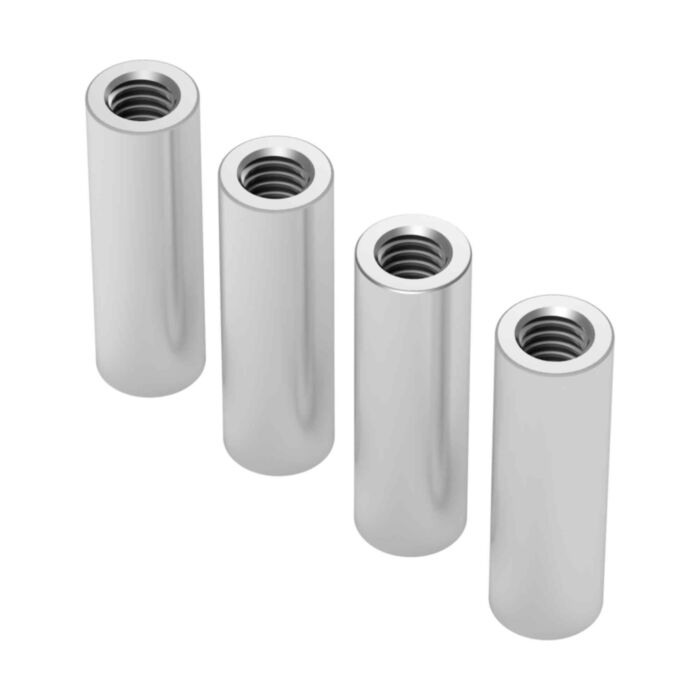

1501 Series M4 x 0.7mm Standoff (6mm OD, 19mm Length) - 4 Pack

SKU: GB-1501-0006-0190 Brand: goBilda

The 19mm length standoffs can be used conventionally to space parallel plates, run bearings on or use as a shaft but they shine when used.....

$4.95 AUD, inc GST

$4.50 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

10-25 $4.27 (exc GST)
25+ $4.05 (exc GST)

The 19mm length standoffs can be used conventionally to space parallel plates, run bearings on or use as a shaft but they shine when used with 1121 Series Low-Side U-Channel. Low-Side U-Channel can be ‘boxed’ by turning the open sides toward one-another and installing these spacers in-between. This creates a very solid structure that can house your drive components in a chassis while occupying a minimal amount of space. The 2.5mm wall of each channel, combined with the 19mm length standoffs yields a collective width of 24mm in order to keep your build lined up with the 8mm grid pattern.

Downloads

STEP File

Specs

Weight	0.90g Each
Material	Aluminum
Finish	Clear Anodized
