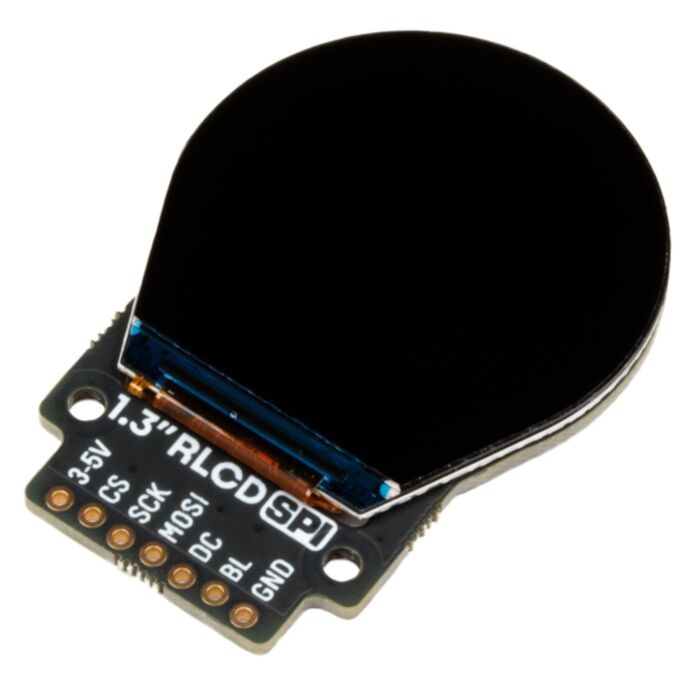

1.3" SPI Colour Round LCD (240x240) Breakout

SKU: PIM570 Brand: Pimoroni

High-res and vibrant, with sweet viewing angles (IPS), this 1.3" round LCD screen will add some stylish curves to your Raspberry Pi projects...

$57.55 AUD, inc GST

$52.32 AUD, exc GST

Quantity Discounts:

6-12 $50.75 (exc GST)
12+ $49.70 (exc GST)

Out of Stock

High-res and vibrant, with sweet viewing angles (IPS), this 1.3" round LCD screen will add some stylish curves to your Raspberry Pi projects.

ow … ound … round … ground - this unconventional round display is ideally shaped for things like watch faces, speedometers and displaying data in interesting circular ways like pie charts and polar area graphs. You could also use it to add animated eyes to cosplay masks, build a moon phase tracker or just for displaying all the best round GIFs of pizzas, hypnotic spirals and chonky animals.

Like our smaller 0.9" and our squarer 1.3" LCD breakouts, it's an IPS display so it has great viewing angles and it's super-crisp and bright. It's driven by SPI and you should be able to run it at up to ~60FPS, although Pimoroni has found that anywhere from 10FPS looks good for most uses.

You can use this breakout completely solder-free with our Breakout Garden HAT with SPI, Breakout Garden Mini with SPI or Breakout Garden 400.

Features

1.3" colour round LCD (240x240 pixels)
SPI interface
3.3V or 5V compatible
Reverse polarity protection
Compatible with all models of Raspberry Pi.
Compatible with Raspberry Pi Pico.
Python library
C++/MicroPython libraries for Raspberry Pi Pico

Specifications

240x240 pixels (~260 PPI)
Active area: 32.4mm diameter circle
>10000 cd/m2 brightness
ST7789 driver chip

Software

This breakout uses the same ST7789 library as the square version. The library makes it straightforward to display images, text or graphics, and even display animated GIFs! If you're using a Raspberry Pi, you can install it with:

sudo pip3 install st7789

You may also need to enable I2C and SPI in raspi-config.

When running the generic examples, you'll need to specify that you're using a round display to offset the screen correctly, e.g.

python3 gif.py deployrainbows.gif round

Connecting to your Raspberry Pi

If you're not using a Breakout Garden, then this is how to connect your LCD Breakout up to your Raspberry Pi.

Our Python library is set up to use SPI 0 by default on the Pi (BCM 7 for CS, BCM 11 for SCK, and BCM 10 for MOSI), BCM 9 for DC, and BCM 19 for the backlight.

Here's which pins to connect between your LCD breakout and your Pi's GPIO (note that it's BCM pin numbering):

3-5V to any 5V or 3V pin
CS to BCM 7
SCK to BCM 11
MOSI to BCM 10
DC to BCM 9
BL to BCM 19
GND to any ground pin

You can of course use other pins with your LCD Breakout, but you'll have to change them accordingly when you instantiate the display in your code.

Notes

Dimensions: (approx) 36 x 50 x 5mm
