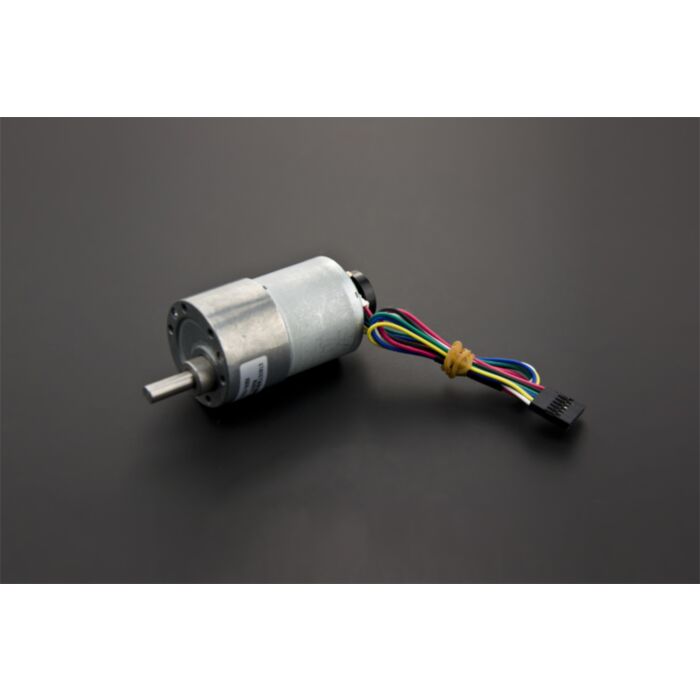

12V DC Motor 122rpm w/Encoder

SKU: FIT0403

$47.11 AUD, inc GST
$42.83 AUD, exc GST

More Views

12V DC Motor 122rpm w/Encoder
47.11 AUD

SKU: FIT0403

$47.11 AUD, inc GST
$42.83 AUD, exc GST
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This is a Gear Motor w/Encoder, model No. GB37Y3530-12V-90EN. It is a powerful 12V motor with a 90:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 5756 counts per revolution of the gearbox’s output shaft.

These units have a 0.61" long, 6 mm-diameter D- shaped output shaft. This motor is intended for use at 12V, though the motor can begin rotating at voltages as low as 1V.
The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm apart.
This motor is an ideal option for your mobile robot project.

Note: Do not screw too far into the mounting holes as the screws can hit the gears. Manufacturer recommends screwing no further than 3mm (1/8") into the screw hole.

Specification

  • Gear ratio: 90:1
  • Free-run speed @ 12V: 122 rpm
  • Free-run current @ 12V: 0.35A
  • Rated torque @ 12V: 8.7 kg*cm
  • Encoder Resolution: 64CPR(motor shaft)/5760CPR(gearbox shaft)
  • Weight: 205g

Documents

  • 12V DC Motor 122rpm w/Encoder(GB37Y3530-12V-90EN) x1
Documentation and Resources:
