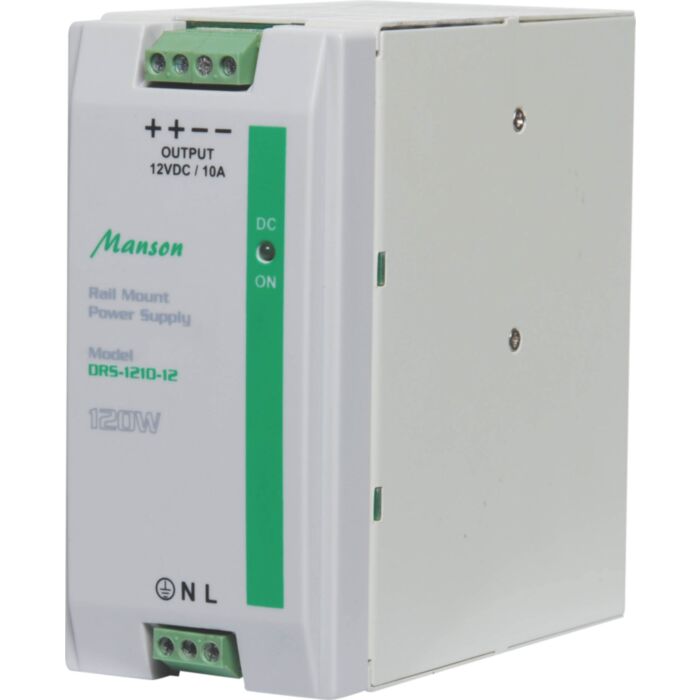

120W 12VDC DIN Rail Switchmode Power Supply

SKU: AM8406

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Switchmode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced. Though the power supplies are supplied in a vented steel cabinet they must be installed within a secondary earthed cabinet as the 240V input terminals are exposed.

Features

Screw terminals for inputs and outputs
Wide operating input voltage 90 – 264VAC, 47 – 63Hz
Excellent output regulation from no load to full load
High efficiency
Overload and short circuit protection
Inbuilt EMI filter to reduce noise radiation
EMC approved

Input:
Input range: 90-264V AC
Frequency: 47-63Hz
In rush current: 55A @240V AC
Efficiency: Approx. 85%
Line regulation: ±0.2%

Output:
Max power: 120W
Output voltage: 10.5 - 14V
Output current: 10A
Ripple/noise: =< 50mv

Dimensions: 61W x 126D x 125H

Downloads

Datasheet
