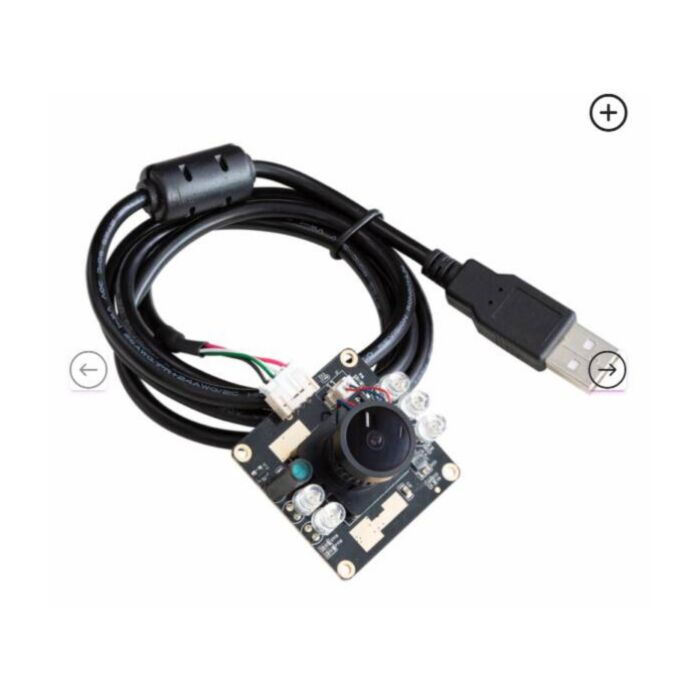

Day & Night Vision USB Camera Module

SKU: AC-B0205 Brand: Arducam

Retired Product

Replaced by: AC-B0506

This product has been replaced by: AC-B0506
This product is no longer available. This page is only for reference.

The B0205 is a new member of the Arducam’s USB camera family. Based on 1/2.7” OV2710, it's a 2MP, UVC compliant, wide angle USB 2.0 camera with motorized IR-Cut filter and infrared LEDs. The motorized (switchable) IR-CUT filter and infrared LEDs can be triggered by the photoresistor according to the light environment to be ON/OFF to block or pass the infrared light. It can be widely used in wildlife photography, home security system, baby camera, etc.

Specifications
- Sensor: 1/2.7” OV2710
- Resolution: 2MP 1920 x 1080
- Data Format: MJPG/YUY2
- Frame Rate: MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 480.

- IR Sensitivity: Integral IR filter, switch automatically based on light conditions (only visible light during the daylight and IR sensitivity during the night

- Connector: SWR201-NRTN-S04-RL-WH

Lens
- Field of View (FOV):H= 100°, D=138°
- Lens Mount: M12
- Focusing Range: 3.3ft (1M) to infinity

Lens options

SKU	LN065	LN005	LN055	LN007
Model No:	M2512ZH03	M27210H08	M27195H15	M25170H12
Optical Format	1/2.5”	1/2.7”	1/2.7”	1/2.5”
EFL(mm)	12	2.1	1.95	1.7
BFL(mm)	6.5	6.3	3.8	4.7
Construction	6G+IR	6G+IR	6G+IR	6G+IR
F/NO	2.0	2.0	2.0	2.0
FOV (D/H/V) on 1/2.7‘’ Cam	31/27/15	136/130/101	158/155/136	180/180/180
FOV (D/H/V) on 1/2.8‘’ Cam	29/25/14	131/125/94	154/150/129	180/180/180
FOV (D/H/V) on 1/2.9‘’ Cam	26/23/13	127/120/89	149/145/121	180/180/180
IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter
MOD	0.3m	0.3m	0.2m	0.2m
Size(mm)	14 x 16.7	14 x 15.2	17.5 x 19.9	20 x 18.7

Functionality and Compatibility

Auto Control: Saturation, Contrast, Acutance, White balance, Exposure.
System Compatibility: Windows, Linux, Mac and Android with UVC.
Serial Number: Supports modifying the Serial Number.

Power

Power Supply: USB powered 5V
Working Current: MAX 500mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 38mmx38mm
Cable Length: 3.3ft (1M)
Connector No: S4B-ZR(LF)(SN)
