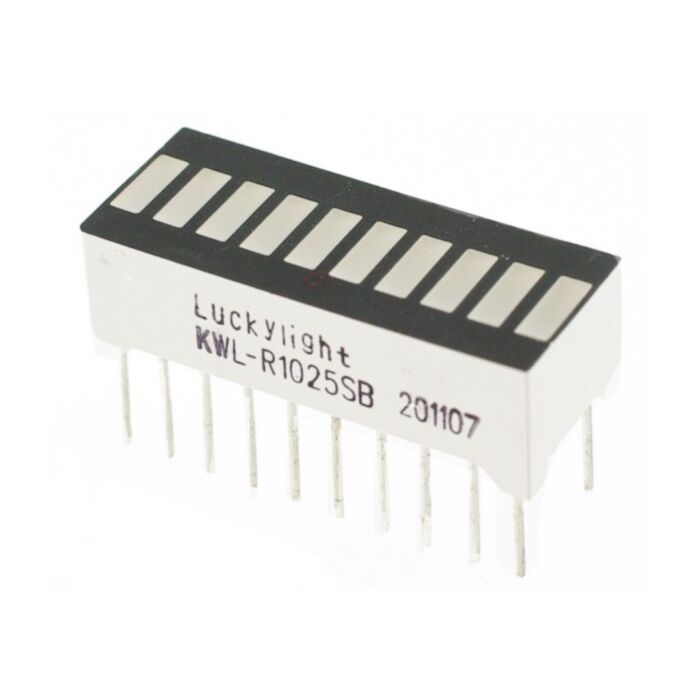

10 Segment LED Bar Graph - Red

SKU: FIT0188

$2.45 AUD, inc GST
$2.23 AUD, exc GST

More Views

10 Segment LED Bar Graph - Red
2.45 AUD

SKU: FIT0188

$2.45 AUD, inc GST
$2.23 AUD, exc GST
1 reviews 0 5 5
Shipping Offer
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

These 10 segment bar graph LEDs have many uses. With a compact footprint, and a simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual red LEDs housed together.



Applications

  • Audio equipment
  • Instrument panels
  • Digital readout display
  • Signal strength display
  • Power status display
  • Art display


Specification

  • Forward Current (Per Segment): 25mA
  • Max Reverse Voltage: 5v
  • 10 segment bar
  • Color: Super Bright Red
  • Industrial standard size
  • Low power consumption
  • Categorized for luminous intensity


Shipping List

  • 10 segment led bar graph - Red(1 unit)

Documents

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Chris verified purchaser
    Rating
    100

    I love these little units. They're so much easier to use than individual LEDs. Would like some models that are a bit longer. (Posted on 18/04/2017)
