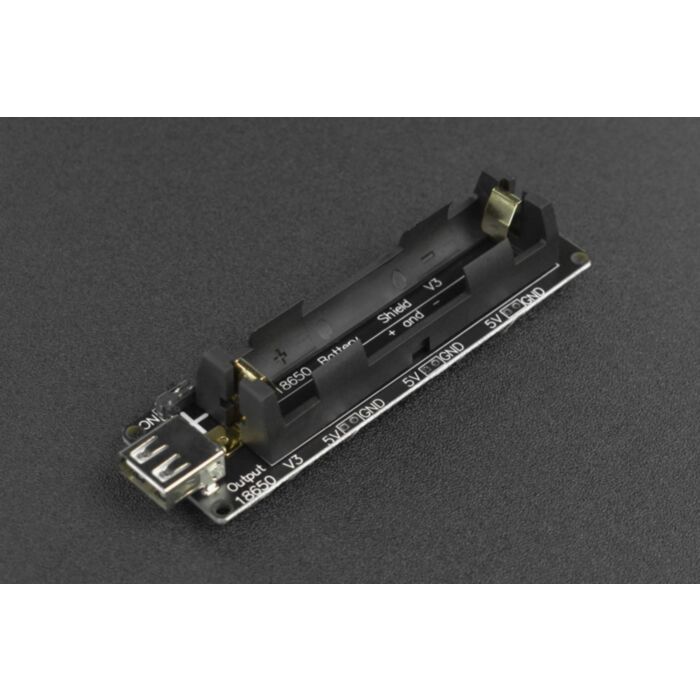

1-Way 18650 Battery Holder

SKU: DFR0968 Brand: DFRobot

This easy-to-use 18650 Battery Holder with 1-Slot offers micro-USB input, one 5V/2A USB output, three 5V/2A output ports and three 3.3V/1A port output....

$11.85 AUD, inc GST

$10.77 AUD, exc GST

Quantity Discounts:

10-25 $10.45 (exc GST)
25+ $10.24 (exc GST)

Out of Stock

Recommended Essentials:

Polymer Lithium Ion Battery, 18650 Cell (3.7V 2600mAh)

$11.80

Makerverse USB-C LiPo Charger

$5.40

This easy-to-use 18650 Battery Holder with 1-Slot offers micro-USB input, and it can be installed with a 18650 battery, one 5V/2A USB output, three 5V/2A ports output, and three 3.3V/1A ports output.

It comes with overcharge and over-discharge protection that greatly extends the lifespan of your 18650 battery. There is a power switch for controlling output.

This battery holder can be worked as the power source for microdevices, outdoor equipment, or DIY smart vehicles.

Board Overview

1-Way 18650 Battery Holder

The input is Micro USB, the output has USB and port output. The power switch controls whether to output. The LED lights up red means in charging, and green means it is fully charged.

Notes

The maximum current is 3A shared between the output ports (3A is not recommended), and the output of the current depends on the quality of the 18650 battery.

Pay attention to battery polarity when installing. The + and - are clearly marked on the board, and the wrong direction will burn the module.

Note that this board does not support charging and discharging at the same time. It may not be used as a UPS.

Features

With overcharge and over-discharge protections

Applications

Power source for microdevices, outdoor equipment, and DIY smart vehicles

Specification

Output Current: 5V/2A, maximum support 3A; 3.3V/1A
Protection: with overcharge and over-discharge protection
Input: Micro input
Output:
- 1x USB output
- 3x 3.3V output port
- 3x 5V output port
LED indicator (green for fully charged, red for charging)

Parts List

1-Way 18650 Battery Holder x1
