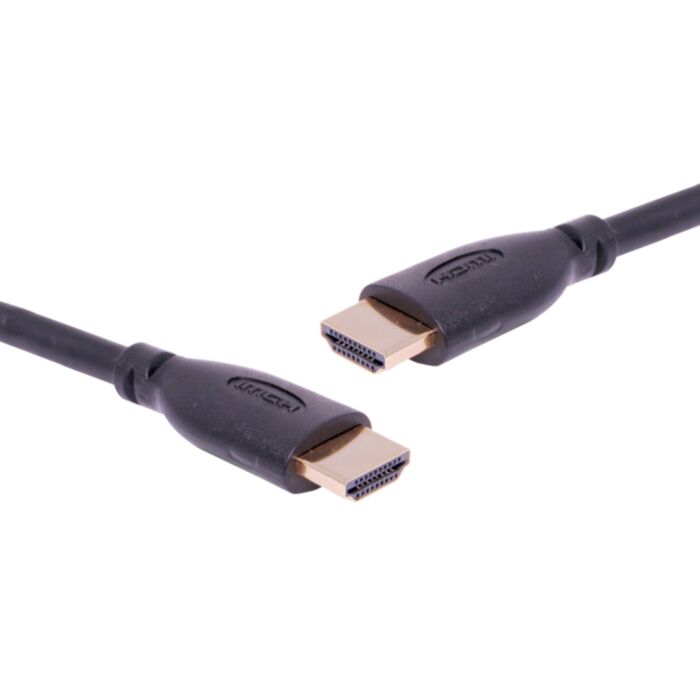

Narrow HDMI plug design suits 25mm electrical conduits.
Due to feedback from installers we have designed this range of HDMI leads to use a narrow profile connector which is suitable for running through 25mm electrical conduits in walls and slabs. This makes it much easier to run cables on the job without the need for complicated cable terminations.
Key Features:
» HDMI certified.
» Lifetime warranty.
» Narrow profile plug suits 25mm conduits.
» 30AWG cable guage with fibre wrap shielding
» Offers high performance with V2.0 compliance.
» Supports 4K resolutions at 60fps.
» 32 channels of audio.
» 8Gbits/s TMDS bandwidth.
» 48 bit/px deep colour.
HDMI High Speed With Ethernet. Made by an official HDMI adopter.
Altronics only stocks the 'HDMI High Speed With Ethernet' type of leads outlined in the official HDMI adopter standard. These leads are compatible with all HDMI equipment which complies to this standard including both V1.4 and V2.0 equipment. Read more about HDMI lead types.
Specifications
- Ethernet channel
- Audio return channel
- 4k x 2k resolution support (4k at 60fps)
- 3D over HDMI
- 18Gbit/s bandwidth
- HDCP compliant
- 30AWG cable guage with fibre wrap shielding
- Supports 48 bit Deep Colour
- Supports Dolby® Digital & DTS®
- Supports Dolby® TrueHDTM & DTS®-HD Master Audio
