ADXL377 - High-G Triple-Axis Accelerometer (+-200g Analog Out)

Rating:
100% of 100
SKU: ADA1413 Brand: Adafruit
Hey rocket man (burnin' out your fuse out there alone) ever wonder how fast you're rocketing? The ADXL377 +-200g 3-axis accelerometer may be able to tell the answer...
$49.45 AUD, inc GST
$44.95 AUD, exc GST

Quantity Discounts:

  • 10-25 $43.15 (exc GST)
  • 25+ $41.81 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Hey rocket man (burnin' out your fuse out there alone) ever wonder how fast you're rocketing? The ADXL377 +-200g 3-axis accelerometer may be able to tell the answer. You read that right, this accelerometer can sense up to 200g's of force. Incredible! Not surprisingly, Adafruit couldn't say "no" to a breakout for this sensor.

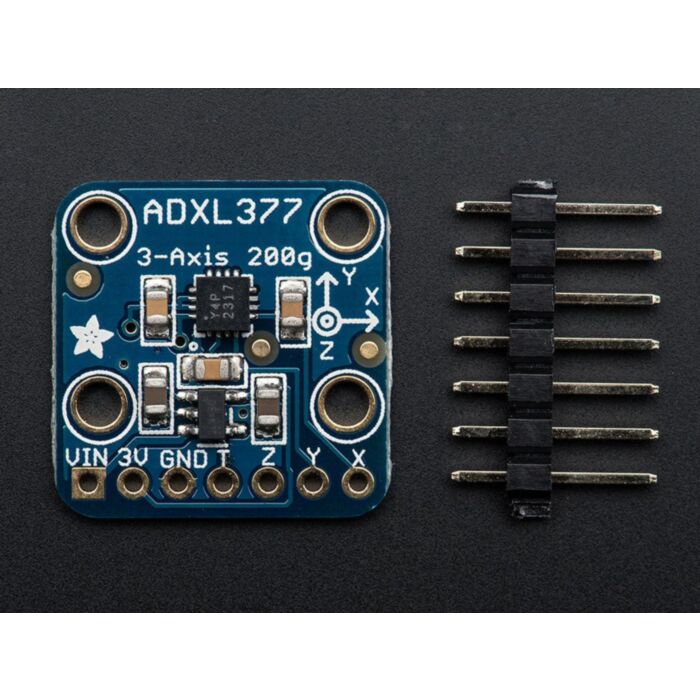

The sensor is soldered onto a PCB with four mounting holes (in case you don't remember, this is accelerating at up to 200g's!) and a 3.3V regulator so you can use it with 5v logic such as an Arduino. They also add 0.01uF filter caps for 500Hz output bandwidth.

This breakout comes with 3 analog outputs for X, Y and Z axis measurements on a 0.75"x0.75" breakout board. The analog outputs are ratiometric: that means that 0g measurement output is always at half of the 3.3V output (1.65V), -200g is at 0v and 200g is at 3.3V with full scaling in between.

Fully assembled and tested. Comes with 8 pin 0.1" standard header in case you want to use it with a breadboard or protoboard. Four 2.5mm (0.1") mounting holes for easy attachment.

The XYZ filter capacitors are 0.01uF for a 500 Hz bandwidth

See the ADXL377 webpage for datasheets and more

ADXL377 - High-G Triple-Axis Accelerometer (+-200g Analog Out) (3:44)

Technical Details

Dimensions (without header):

  • Length:19mm/0.75in
  • Width:19mm/0.75in
  • Height:3.14mm/0.12in
  • Weight:1.27g/0.04oz

ADXL377 Datasheet, EagleCAD PCB files, and Fritzing object available in the product tutorial
