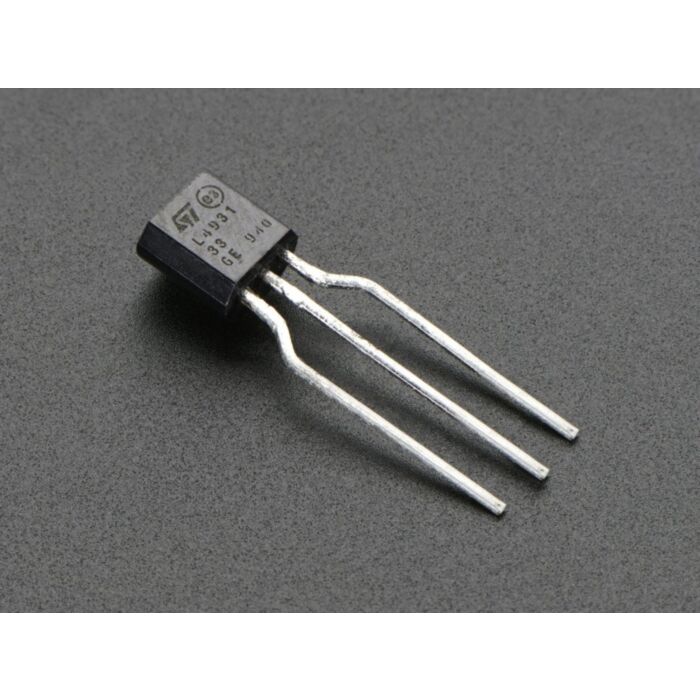

3.3V 250mA Linear Voltage Regulator - L4931-3.3 TO-92

Rating:
80% of 100
SKU: ADA2166 Brand: Adafruit
Need a nice little 3.3V regulator? Adafruit rather like the very-low-dropout L4931 from ST! This little guy will help you get your 4-20V battery or wall adapter down to...
$3.10 AUD, inc GST
$2.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 1st of Apr

Quantity Discounts:

  • 10-25 $2.71 (exc GST)
  • 25+ $2.62 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Need a nice little 3.3V regulator? Adafruit rather like the very-low-dropout L4931 from ST! This little guy will help you get your 4-20V battery or wall adapter down to a nice clean 3.3V with 2% regulation. Perfect for just about all electronics!  This is a TO-92 package version, with up to 250mA current capability, and has internal current limiting + thermal shut-down protection which makes it sturdy and pretty much indestructible - at least electronics-wise (Adafruit are pretty sure a hammer might work...)

This regulator has a very low 0.4V linear drop-out, way better than the 780X series' 2V. That means you must give it at least 3.7V to get a clean 3.3V out. This regulator is often used to get a 5V power supply or Lithium polymer/ion battery to a a clean 3.3V. There is a constant 'quiescent' current draw of 1mA (which increases up to 5mA as you draw 250mA) so it's good for portable and battery-powered projects

This regulator can provide up to 250 mA peak as long as you do not overheat the package. The higher your input voltage and output current, the more heat it will generate. Without an extra heatsink, you can burn off up to 0.6W.  Adafruit like this calculator for determining your heat sink requirements It's a TO-92 package, so use 200°C/Watt junction-to-air thermal resistance. The wattage of your set up is = (InputVoltage - 3.3V) * AverageCurrentInAmps. E.g. a 9V battery and 0.2 Amp of average output current means the regulator is burning off (9 - 3.3)*0.2 = 1.14 Watts! That's way too much for the little package, it will overheat. Instead, reduce your average current to 0.1A (for 0.57W) or you could use a 5V power supply for (5-3.3)*0.2 = 0.34W, both of which would not require a heatsink.

This regulator requires at least 2,2uF electrolytic capacitors on both input and output for stability, 10uF will do the joy nicely.

Technical Details

  • Datasheet
  • Dimensions: 21mm x 5mm x 5mm / 0.8" x 0.2" x 0.2"
  • Pin Length: 16mm / 0.6"
