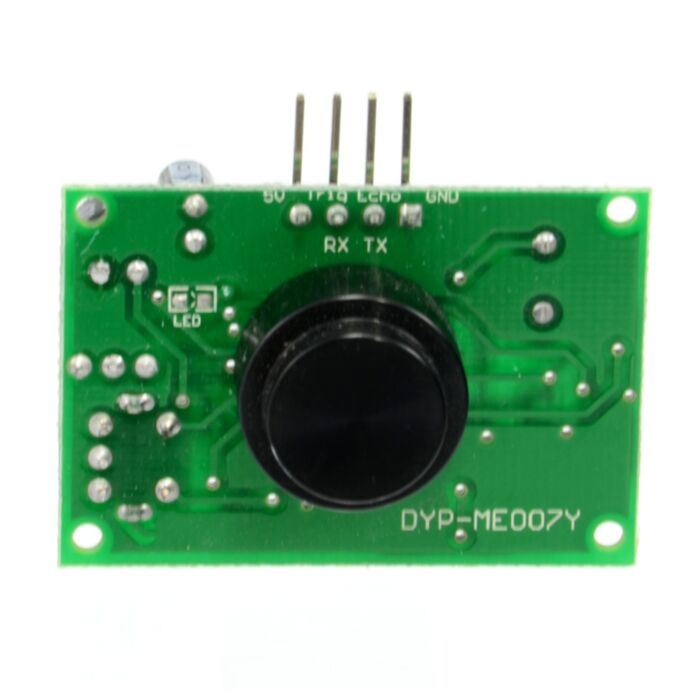

Water-proof Non-contact Ultrasonic Motion / Distance Sensor Module

SKU: 017-MB-SM19116

$20.87 AUD, inc GST
$18.98 AUD, exc GST

More Views

Water-proof Non-contact Ultrasonic Motion / Distance Sensor Module

SKU: 017-MB-SM19116

$20.87 AUD, inc GST
$18.98 AUD, exc GST
1 reviews 0 5 4

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

This ultrasonic sensor provides non-contact distance measurement, with a 30cm to 3.5m detecting range, it is widely used in fields like industrial, automotive, education and robots, etc.

Note: The minimum testing distance of this module is 30cm. Make sure that there is no object within the minimum detecting distance. Otherwise, the measuring result will be inaccurate.

Features:

  • Size: 40.8(L) * 33.5(W) * 20.8(H)mm
  • A non-contact distance measurement module
  • Electronic brick compatible interface and breadboard friendly
  • Water-proof, four-pin on board (5V, RX, TX, GND )
  • Designed for easy modular project usage with industrial performance
  • Dual transducer
  • Low voltage, low power consumption
  • Wide measurement range and high accurac

Specification:

Specification
Value
Detecting Range
30cm-3.5m (11.8-137.8 inch)
Supply Voltage

5V DC

Global Current Consumption
15mA
Resolution
About 1cm
Angle
<30 degree
Ultrasonic Frequency
40KHz
Trigger Pulse Width
10 μs



 Applications:

  • Applications for water ranging
  • Obstacle avoidance program-controlled car
  • Robot obstacle avoidance
  • Teaching apparatus
  • Security, industrial control

Package content:

  • Waterproof Ultrasonic sensor x 1

Downloads:

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments


Customer Reviews

  1. Review by Aaron - Great for the price. verified purchaser
    Rating
    80

    Really simple product to use with great general performance. As with all these lower-end sensors, tuning the field angle is not possible, but that will only effect advanced applications. (Posted on 10/01/2015)
