Wide measuring range (2.5 to 99999 RPM) with a large 5 digit LCD display. Included with this product is a length of reflective tape that can be applied to items being tested.
There are no instructions in the box; although there are only a couple of buttons. Easy to use and a handy piece of test equipment to have.
Features:
|
Special Function |
|
|
Size |
5 digit large LCD displaying,digit height is 18mm |
|
Measuring range |
2.5~99999 Loop/minutes |
|
Resolution |
0.1RPM (2.5~99999RPM) |
|
1RPM (1000RPM ) |
|
|
Accuracy |
±(0.05%+1D) |
|
Sample time |
0.5 second(120RPM) |
|
Range select |
Automatic select(laser) |
|
Effective distance |
50mm~500mm |
|
Working Current |
Max.40mA |
|
Memory |
Auto memory Max./Min./Last value |
|
Time Base |
6MHz |
|
Power |
9V (6F22) Battery (not included) |
|
Dimension |
Approx:130×70×29mm |
|
Net weiget |
Approx:132g |
Contents:

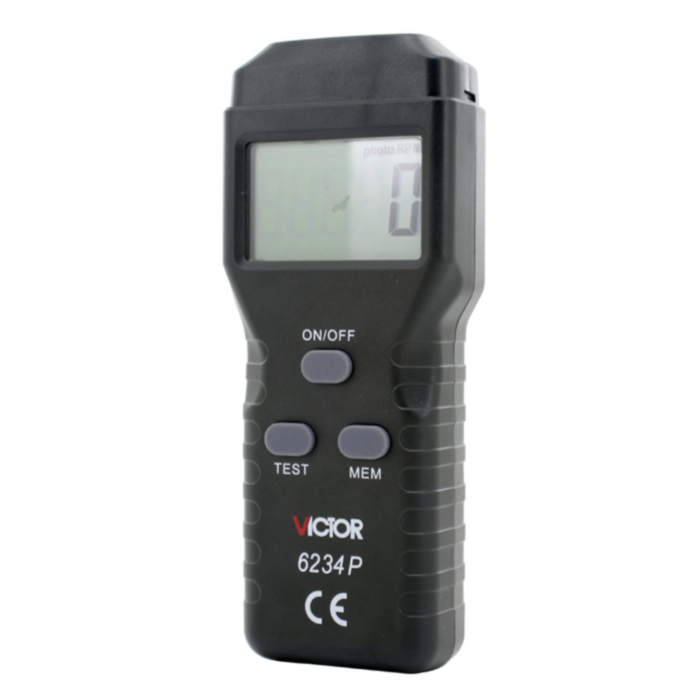

- 1x VICTOR DM6234P+ Digital Tachometer
- 1x Length of reflective tape that can be applied to units under test
