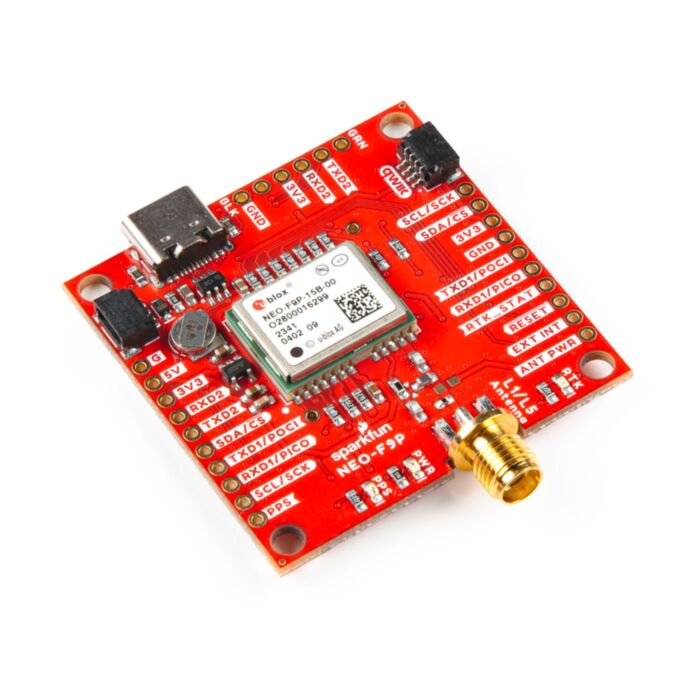

SparkFun GNSS-RTK L1/L5 Breakout - NEO-F9P (Qwiic)

SKU: GPS-23288 Brand: Sparkfun

The SparkFun GNSS-RTK L1/L5 Breakout - NEO-F9P (Qwiic) is a high precision GNSS board with equally impressive configuration options...

$474.95 AUD, inc GST

$431.77 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 02

Quantity Discounts:

3-5 $418.82 (exc GST)
5+ $410.18 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

The SparkFun GNSS-RTK L1/L5 Breakout - NEO-F9P (Qwiic) is a high-precision GNSS board with equally impressive configuration options. The NEO-F9P utilizes the L1/L5 bands instead of the the more commonly seen L1/L2 option. Utilizing the L5 band, the NEO-F9P delivers improved performance under challenging urban environments because the L5 signals fall within the protected ARNS (aeronautical radio navigation service) frequency band. This band is less subject to RF interference.

The NEO-F9P module is a powerful 184-channel u-blox F9 engine GNSS receiver, meaning it can receive signals from the GPS, GLONASS, Galileo, and BeiDou constellations with 10mm, three-dimensional accuracy! That's right; such accuracy can be achieved with an RTK navigation solution when used with a correction source. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail! The module supports the concurrent reception of four GNSS systems. This module features a survey-in mode, allowing the module to become a base station and produce RTCM 3.x correction data.

We've included a rechargeable backup battery to keep the latest module configuration and satellite data available for up to two weeks. This battery helps 'warm-start' the module, decreasing the time-to-first-fix dramatically from a cold start of ~27s down to a hot start of ~3s. The battery will maintain RTC and GNSS orbit data without being connected to power for plenty of time. Sparkfun have included an SMA connector for a secure connection.

The NEO-F9P even has five communications ports, which are all active simultaneously: USB-C (which enumerates as a COM port), UART1 (with 3.3V TTL), UART2 for RTCM reception (with 3.3V TTL), I²C, and SPI. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, Sparkfun still have broken out 0.1"-spaced pins if you prefer a breadboard.

u-blox-based GPS products are configurable using the popular but dense Windows program u-center. Many different functions can be configured on the NEO-F9P: baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GNSS, increasing the high precision RTK solution to 20Hz, etc. All of this can be done within the SparkFun Arduino Library!

Our extensive Arduino Library for u-blox modules makes reading and controlling the GNSS-RTK over our Qwiic Connect System easy. Leave NMEA behind! Start using a much lighter-weight binary interface and give your microcontroller a break. The SparkFun Arduino library shows how to read latitude, longitude, even heading, and speed over I²C without constant serial polling.

This product requires an antenna: Be sure to check out the related products/hookup accessories and pick a suitable GNSS antenna for your project.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started With the SparkFun Qwiic GNSS-RTK L1/L5 Breakout - NEO-F9P Guide

Features

1x USB Type C Connector
2x Qwiic Connectors
Default I²C Address: 0x42
Integrated SMA connector
Concurrent reception of GPS, GLONASS, Galileo and BeiDou
184-Channel GNSS Receiver
Receives L1/L5 Bands
Voltage: 5V or 3.3V but all logic is 3.3V
Current: 95mA - 135mA (varies with constellations and tracking state)
Time to First Fix: 27s (cold), 3s (hot)
Max Navigation Rate:
- RTK (basic location over UBX binary protocol) - 25Hz
- PVT - 25Hz
- RAW - 25Hz
Horizontal Position Accuracy:
- 1.5m without RTK
- 0.01m with RTK
Vertical Position Accuracy:
- 2.0m without RTK
- 0.01m with RTK
Time Pulse Accuracy: 30ns
Operational Limits
- Max G: =4G
- Max Altitude: 80km (49.7 miles)
- Max Velocity: 500m/s (1118 mph)
Software Configurable
- Geofencing
- Odometer
- Spoofing Detection
- External Interrupt
- Pin Control
- Low Power Mode
- Many others!
Supports NMEA, UBX, RTCM, SPARTN, CLAS protocols over UART or I2C interfaces
Power LED
Jumpers
- USB Shield
- Power LED
- 3v3 (for UART2 Port)
- I²C Pull-Up Resistors
- SPI
- Pulse Per Second (PPS)
- RTK Status LED
Board Dimensions
- 1.70" x 1.70" (43.2mm x 43.2mm)
